SDSS Buttweld Tee and Super Duplex Elbow manufacturer in India
Manufacturing Super Duplex Fittings as per ASME B16.9 American Standards, check SDSS Buttweld Fittings Price in India
A SDSS grade is designed with an austenitic and ferritic microstructure. The Super Duplex Pipe Fittings are designed with a superior chemical composition of nickel, chromium, and molybdenum. This content allows the fittings to showcase superior corrosion and oxidation resistance properties. These fittings play a pivotal role in influencing the characteristics of the flow in different conditions. Super Duplex Fittings possess good strength and have good resistance to stress corrosion at moderate temperatures when compared to austenitic grade steel. These fittings have enhanced resistance to crevice corrosion and pitting by acids in stress-induced setups. The super duplex stainless steel pipe fittings have a density of 7.8 g/cm3 with outstanding mechanical properties. These fittings may be slightly magnetic in certain conditions and possess an electrical resistivity of 8.12 μohm/cm. The versatile fittings are quality assured and manufactured by our renowned technicians with the best raw materials and latest technology.
The Super Duplex Elbow is a versatile fitting that is very common in this grade. These elbows play a pivotal role in changing the direction of the flow in the system. The elbows are designed with long or short diameter radiuses and are generally produced having 45 or 90-degree turns. All these fittings are available in different sizes and shapes to meet different customer requirements. Contact us if you are looking for super duplex pipe fittings manufacturers in India.
Table of Content
Material Specification of Super Duplex Fittings
| Material: | Super Duplex |
| Size: | 1/8” NB TO 48” NB. (Seamless & Fabricated, 100% X-Ray Welded) |
| Type: | Elbow, Tee, Cap, Reducer, Stud-Ends, Cross |
| Standard Provided By Manufacturer | ASME/ANSI B16.9, EN10253, DIN2605/2615/2616/2617, JIS B2311/2312/2313, MSS SP-43/75 |
| WT: | Sch 5s, Sch 40s, Sch 10s,Sch 160s, Sch 80s, Sch XXS |
| Surface finish provided by manufacturer | Shot blasting, Sand blasting or Pickling surface |
| Forming: | Mandrel Forming or Press Forming |
| Connection |
|
| Test Certificates By Manufacturer | EN 10204/3.1B 100% Radiography Test Report Raw Materials Certificate Third Party Inspection Report, etc |
|---|---|
| Thickness | STD SCH40, SCH 80, SCH 120, SCH30, SCH20, SCH60, XS,SCH 160, SCH 100, SCH 140, SCH10, XXS available with NACE MR 01-75 |
| Elbows Manufacturer | Angle : 30deg, 90 deg, 22.5 deg, 45 deg, 1.0D, 180 deg, 1.5D, 3D, 2.5D, 2.0D, 4D, 6D, 5D, 7D-40D . Standard: ASME B16.28, MSS SP-75 JISB2311 DIN2605 JISB2312 JISB2313, GB, ASME B16.9, ASME B16.25, BS, ISO |
| Manufacturing process | Forge, Push, Press, Cast, etc. |
| Origin & Mills | Japanese, European,USA, Ukraine, Korean, Indian, Russian |
| Bending Radius By Manufacturer | Radius=1 D, 2D, 3 D, 5D, 6D, 8 D, 10D |
| Application | For Water, Oil and Gas Industrial |
ASTM A815 Super Duplex Buttweld Fittings Dimensions
| Nominal Pipe Size | Outside Diameter | 45° Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | Long Radius | Long Radius | Short Radius | Long Radius | ||||
| (mm) | (inches) | Center to Face (inches) |
Radius (inches) |
Center to Face (inches) |
Center to Face (inches) |
Center to Center (inches) |
Back to face (inches) |
|
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | - | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | - | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Looking for a genuine Super Duplex Pipe Fittings manufacturer in India? SABIC approved manufacturer of SDSS Long and Short Radius Elbow in Mumbai
Super Duplex Fittings Price List
$
44.67
Per Piece
SUPER DUPLEX SS SEAMLESS CON REDUCER
$
3.56
Per Kg
SDSS SEAMLESS 90 ELBOW Long Radius
$
62.10
Per Piece
ELBOW 90 LR DN 25 SCH 40S SDSS
$
4.18
Per Kg
SDSS SEAMLESS EQUAL TEE
$
199.98
Per Kg
SUPER DUPLEX CAP DN 250 SCH 40S
$
14.05
Per Piece
ASTM A815 SDSS SEAMLESS PIPE FITTING
Super Duplex Pipe Fittings Chemical Properties
| C | Mo | Ni | Cr | N | Others |
|---|---|---|---|---|---|
| 0.020 | 4.0 | 7 | 25 | 0.27 | S=0.001 |
ASTM A815 SDSS Fittings Mechanical Properties
| Ultimate Tensile Strength, ksi | 116 min. |
|---|---|
| 0.1% Offset Yield Strength 0.2%, ksi | 91 min. |
| 0.2% Offset Yield Strength 0.2%, ksi | 80 min. |
| Elongation in 2 inches, % | 15 min. |
| Impact Energy, ft.-lbs. | 74 min. |
| Hardness Rockwell C | 32 max. |
SDSS Pipe Fittings Equivalent Grade
| STANDARD | UNS | WERKSTOFF NR. |
| SDSS 2507 | S32750 | 1.4410 |
Super Duplex Fittings manufacturer in India offers NACE Certified products, supply SDSS Cross, Reducer, Stub Ends, Pipe Bend and End Cap with MTC EN 10204 3.1
Physical Properties of SDSS Pipe Fittings
| Density | lb/in^3 | 0.28 |
|---|---|---|
| Heat Capacity | Btu/lb/°F | 0.12 |
| Coefficient of Thermal Expansion 68-212°F/°F |
x10^-6/°F | 7.2 |
| Thermal Conductivity | Btu/h ft °F | 8.7 |
| Modulus of Elasticity | psi x 10^6 | 29 |
| Electrical Resistivity | W-in x 10^-6 | 31.5 |
Different Types of Super Duplex Fittings
Super Duplex Pipe Fittings
Super Duplex Stainless Steel Fittings
Super Duplex Stainless Steel Pipe Fittings
ASTM A815 Super Duplex Reducers
Super Duplex Concentric Reducer
ASTM A815 45 Degree Long Radius Elbow
Super Duplex Stub End
Super Duplex Steel 1D Elbow
Super Duplex SS Long Stubend
25cr SS 45 Degree Short Radius Elbow
ASTM A815 5D Elbow
Super Duplex SS 180 Degree Long Radius Elbow
SDSS 90 Degree Short Radius Elbow
ASTM A815 End Cap
Super Duplex Elbow
Super Duplex SS Reducing Tee
Super Duplex Steel Reducing Cross
SDSS 3D Elbow
25cr SS Bend
ASTM A815 Super Duplex Equal Cross
Super Duplex Steel Eccentric Reducer
Super Duplex 1.5D Elbow

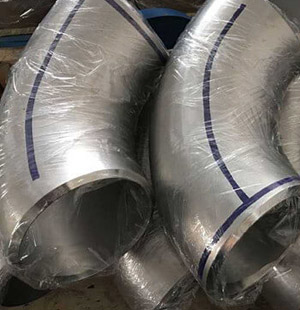

SDSS 90 Degree Long Radius Elbow
Super Duplex Lap Joint Stub Ends
ASTM A815 Super Duplex 180 Degree Short Radius Elbow
Super Duplex Equal Tee
SDSS Short Stubend
SDSS Long Radius Bend
Super Duplex Pipe Cap
25cr SS Welded Elbows
Dimensions of Super Duplex Elbow
| OUTSIDE DIAMETER | NOMINAL PIPE SIZE | CENTER TO END | ||
|---|---|---|---|---|
| OD | Inch. | A | B | C |
| 21.3 | 1/2 | 38 | 16 | – |
| 26.7 | 3/4 | 29 | 11 | – |
| 33.4 | 1 | 38 | 22 | 25 |
| 42.2 | 1 1/4 | 48 | 25 | 32 |
| 48.3 | 1 1/2 | 57 | 29 | 38 |
| 60.3 | 2 | 76 | 35 | 51 |
| 73 | 2 1/2 | 95 | 44 | 64 |
| 88.9 | 3 | 114 | 51 | 76 |
| 101.6 | 3 1/2 | 133 | 57 | 89 |
| 114.3 | 4 | 152 | 64 | 102 |
| 141.3 | 5 | 190 | 79 | 127 |
| 168.3 | 6 | 229 | 95 | 152 |
| 219.1 | 8 | 305 | 127 | 203 |
| 273.1 | 10 | 381 | 159 | 254 |
| 323.9 | 12 | 457 | 190 | 305 |
| 355.6 | 14 | 533 | 222 | 356 |
| 406.4 | 16 | 610 | 254 | 406 |
| 457.2 | 18 | 686 | 286 | 457 |
| 508 | 20 | 762 | 318 | 508 |
| 559 | 22 | 838 | 343 | 559 |
| 610 | 24 | 914 | 381 | 610 |
| 660 | 26 | 991 | 406 | 660 |
| 711 | 28 | 1067 | 438 | 711 |
| 762 | 30 | 1143 | 470 | 762 |
| 813 | 32 | 1219 | 502 | 813 |
| 864 | 34 | 1295 | 533 | 864 |
| 914 | 36 | 1372 | 565 | 914 |
| 965 | 38 | 1448 | 600 | 965 |
| 1016 | 40 | 1524 | 632 | 1016 |
| 1067 | 42 | 1600 | 660 | 1067 |
| 1118 | 44 | 1676 | 695 | 1118 |
| 1168 | 46 | 1753 | 727 | 1168 |
| 1219 | 48 | 1829 | 759 | 1219 |
SDSS Concentric Reducer Weight Chart
| NPS Of | Weight In KG (Kilogram) | Weight In LBS |
| 3/4-1/2 | 0.08 | 0.17 |
| 3/4-3/8 | 0.07 | 0.15 |
| 1-3/4 | 0.18 | 0.4 |
| 1-1/2 | 0.18 | 0.4 |
| 1.1/4-1 | 0.23 | 0.5 |
| 1.1/4-3/4 | 0.18 | 0.4 |
| 1.1/4-1/2 | 0.18 | 0.4 |
| 1.1/2-1.1/4 | 0.32 | 0.7 |
| 1.1/2-1 | 0.28 | 0.62 |
| 1.1/2-3/4 | 0.24 | 0.54 |
| 1.1/2-1/2 | 0.23 | 0.5 |
| 2-1.1/2 | 0.41 | 0.9 |
| 2-1.1/4 | 0.38 | 0.84 |
| 2-1 | 0.34 | 0.76 |
| 2-3/4 | 0.32 | 0.7 |
| 2.1/2-2 | 0.68 | 1.5 |
| 2.1/2-1.1/2 | 0.63 | 1.38 |
| 2.1/2-1.1/4 | 0.57 | 1.25 |
| 2.1/2-1 | 0.57 | 1.25 |
| 3-2.1/2 | 0.91 | 2 |
| 3-2 | 0.82 | 1.8 |
| 3-1.1/2 | 0.77 | 1.7 |
| 3-1.1/4 | 0.73 | 1.6 |
| 3.1/2-3 | 1.43 | 3.15 |
| 3.1/2-2.1/2 | 1.31 | 2.88 |
| 3.1/2-2 | 1.25 | 2.75 |
| 3.1/2-1.1/2 | 1.13 | 2.5 |
| 3.1/2-1.1/4 | 1.09 | 2.4 |
| 4-3.1/2 | 1.59 | 3.5 |
| 4-3 | 1.53 | 3.38 |
| 4-2.1/2 | 1.47 | 3.25 |
| 4-2 | 1.36 | 3 |
| 4-1.1/2 | 1.31 | 2.88 |
| 5-4 | 2.72 | 6 |
| 5-3.1/2 | 2.61 | 5.75 |
| 5-3 | 2.49 | 5.5 |
| 5-2.1/2 | 2.38 | 5.25 |
| 5-2 | 2.27 | 5 |
| 6-5 | 3.86 | 8.5 |
| 6-4 | 3.74 | 8.25 |
| 6-3.1/2 | 3.74 | 8.25 |
| 6-3 | 3.63 | 8 |
| 6-2.1/2 | 3.29 | 7.25 |
| 8-6 | 5.99 | 13.2 |
| 8-5 | 5.44 | 12 |
| 8-4 | 4.99 | 11 |
| 8-3.1/2 | 4.99 | 11 |
| 10-8 | 9.98 | 22 |
| 10-6 | 9.75 | 21.5 |
| 10-5 | 9.53 | 21 |
| 10-4 | 9.07 | 20 |
| 12-10 | 15.42 | 34 |
| 12-8 | 14.51 | 32 |
| 12-6 | 14.06 | 31 |
| 12-5 | 13.61 | 30 |
| 14-12 | 27.22 | 60 |
| 14-10 | 26.85 | 59.2 |
| 14-8 | 26.54 | 58.5 |
| 14-6 | 26.31 | 58 |
| 16-14 | 32.21 | 71 |
| 16-12 | 31.75 | 70 |
| 16-10 | 31.52 | 69.5 |
| 16-8 | 31.07 | 68.5 |
| 16-6 | - | - |
| 18-16 | 38.56 | 85 |
| 18-14 | 38.1 | 84 |
| 18-12 | 37.65 | 83 |
| 18-10 | 37.19 | 82 |
| 18-8 | - | - |
| 20-18 | 56.7 | 125 |
| 20-16 | 56.25 | 124 |
| 20-14 | 55.34 | 122 |
| 20-12 | 54.43 | 120 |
| 20-10 | - | - |
| 20-8 | - | - |
| 22-20 | 64.41 | 142 |
| 22-18 | 62.6 | 138 |
| 22-16 | 59.42 | 131 |
| 22-14 | 55.79 | 123 |
| 22-12 | - | - |
| 22-10 | - | - |
| 24-22 | - | - |
| 24-20 | 68.04 | 150 |
| 24-18 | 67.13 | 148 |
| 24-16 | 65.77 | 145 |
| 24-14 | - | - |
| 24-12 | - | - |
| 24-10 | - | - |
| 26-24 | 93.89 | 207 |
| 26-22 | 90.72 | 200 |
| 26-20 | 86.18 | 190 |
| 26-18 | 82.55 | 182 |
| 26-16 | - | - |
| 26-14 | - | - |
| 26-12 | - | - |
| 28-26 | 101.6 | 224 |
| 28-24 | 97.98 | 216 |
| 28-22 | 95.25 | 210 |
| 28-20 | 90.26 | 199 |
| 30-28 | 109.32 | 241 |
| 30-26 | 105.23 | 232 |
| 30-24 | 101.6 | 224 |
| 30-22 | 99.79 | 220 |
| 30-20 | 99.79 | 220 |
Exporter & supplier of Super Duplex Buttweld Fittings in Schedule 40, 60, 80, STD & XXS thickness, lowest price of ASTM A815 SDSS 3D Bend, 180 Degree Return Bends and 90 Degree Elbow
SDSS Equal Tee Dimensions Table
| NPS | Center to End C |
O.D. D |
Center to End M |
| 1/2 | 25 | 21.3 | 25 |
| 3/4 | 29 | 26.7 | 29 |
| 1 | 38 | 33.4 | 38 |
| 1.1/4 | 48 | 42.2 | 48 |
| 1.1/2 | 57 | 48.3 | 57 |
| 2 | 64 | 60.3 | 64 |
| 2.1/2 | 76 | 73 | 76 |
| 3 | 86 | 88.9 | 86 |
| 3.1/2 | 95 | 101.6 | 95 |
| 4 | 105 | 114.3 | 105 |
| 5 | 124 | 141.3 | 124 |
| 6 | 143 | 168.3 | 143 |
| 8 | 178 | 219.1 | 178 |
| 10 | 216 | 273 | 216 |
| 12 | 254 | 323.8 | 254 |
| 14 | 279 | 355.6 | 279 |
| 16 | 305 | 406.4 | 305 |
| 18 | 343 | 457 | 343 |
| 20 | 381 | 508 | 381 |
| 22 | 419 | 559 | 419 |
| 24 | 432 | 610 | 432 |
| 26 | 495 | 660 | 495 |
| 28 | 521 | 711 | 521 |
| 30 | 559 | 762 | 559 |
| 32 | 597 | 813 | 597 |
| 34 | 635 | 864 | 635 |
| 36 | 673 | 914 | 673 |
| 38 | 711 | 965 | 711 |
| 40 | 749 | 1016 | 749 |
| 42 | 762 | 1067 | 711 |
| 44 | 813 | 1118 | 762 |
| 46 | 851 | 1168 | 800 |
| 48 | 889 | 1219 | 838 |
Super Duplex Pipe End Caps Size Range
| OD | ND | INCH | SCH20 | SCH80 | XS | SCH40 | STD |
| Weight | Weight | Weight | Weight | Weight | |||
| 88.9 | 80 | 3 | 0.92 | 0.92 | 0.66 | 0.66 | |
| 114.3 | 100 | 4 | 1.67 | 1.67 | 1.17 | 1.17 | |
| 141.3 | 125 | 5 | 2.78 | 2.78 | 1.91 | 1.91 | |
| 168.3 | 150 | 6 | 4.47 | 4.47 | 2.9 | 2.9 | |
| 219.1 | 200 | 8 | 4.09 | 8.05 | 8.05 | 5.19 | 5.19 |
| 273 | 250 | 10 | 6.36 | 12.5 | 12.5 | 9.15 | 9.15 |
| 323.8 | 300 | 12 | 9.08 | 26.8 | 17.3 | 14.4 | 13.2 |
| 355.6 | 350 | 14 | 13.2 | 34.5 | 20.4 | 18.8 | 15.9 |
| 406.4 | 400 | 16 | 16.8 | 47.7 | 26.3 | 26.7 | 20.4 |
| 457.2 | 450 | 18 | 24.8 | 67.7 | 33.6 | 41.8 | 25.9 |
| 508 | 500 | 20 | 32.2 | 91.3 | 42.7 | 54.9 | 32.2 |
| 558.8 | 550 | 22 | 49.9 | 37.7 | |||
| 609.6 | 600 | 24 | 46.3 | 155 | 59.5 | 93.1 | 46.3 |
Dimensions of A815 Super Duplex Stub End
| NPS | OD | F | T | R Type B |
G | R Type A |
| 1/2 | 21.3 | 50.8 | 2.11 | 0.76 | 34.9 | 3.05 |
| 3/4 | 26.7 | 50.8 | 2.11 | 0.76 | 42.9 | 3.05 |
| 1 | 33.4 | 50.8 | 2.77 | 0.76 | 50.8 | 3.05 |
| 1.1/4 | 42.2 | 50.8 | 2.77 | 0.76 | 63.5 | 4.83 |
| 1.1/2 | 48.3 | 50.8 | 2.77 | 0.76 | 73 | 6.35 |
| 2 | 60.3 | 63.5 | 2.77 | 0.76 | 92.1 | 7.87 |
| 2.1/2 | 73 | 63.5 | 3.05 | 0.76 | 104.8 | 7.87 |
| 3 | 88.9 | 63.5 | 3.05 | 0.76 | 127 | 9.65 |
| 3.1/2 | 101.6 | 76.2 | 3.05 | 0.76 | 139.7 | 9.65 |
| 4 | 114.3 | 76.2 | 3.05 | 0.76 | 157.2 | 11.18 |
| 5 | 141.3 | 76.2 | 3.40 | 1.52 | 185.7 | 11.18 |
| 6 | 168.3 | 88.9 | 3.40 | 1.52 | 215.9 | 12.7 |
| 8 | 219.1 | 101.6 | 3.76 | 1.52 | 269.9 | 12.7 |
| 10 | 273.1 | 127 | 4.19 | 1.52 | 323.9 | 12.7 |
| 12 | 323.9 | 152.4 | 4.57 | 1.52 | 381 | 12.7 |
| 14 | 355.6 | 152.4 | 4.78 | 1.52 | 412.8 | 12.70 |
| 16 | 406.4 | 152.4 | 4.78 | 1.52 | 469.9 | 12.7 |
| 18 | 457.2 | 152.4 | 4.78 | 1.52 | 533.4 | 12.70 |
| 20 | 508 | 152.4 | 5.54 | 1.52 | 584.2 | 12.70 |
| 24 | 609.6 | 152.4 | 6.35 | 1.52 | 692.2 | 12.7 |
Welding of Super Duplex Buttweld Fittings
ASTM A815 SDSS Pipe Fittings is a weldable metal that can be attached to itself or other objects by using following methods:
Corrosion Resistance of ASTM A815 Pipe Fittings
ASTM A815 SDSS BW Reducer Weight Calculator Formula
Dimensional Tolerances 25cr SS Straight Tees
| Nominal Pipe Size | 1/2 to 2.1/2 |
3 to 3.1/2 |
4 | 5 to 8 |
10 to 18 |
20 to 24 |
26 to 30 |
32 to 48 |
| Inside Dia at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | +6.4 -4.8 |
+6.4 -4.8 |
| Outside Dia at Bevel (D) |
+1.6 -0.8 |
1.6 | 1.6 | +2.4 -1.6 |
+4 -3.2 |
+6.4 -4.8 |
+6.4 -4.8 |
+6.4 -4.8 |
| Center to End (C / M) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
| Wall Thk (t) | Not less than 87.5% of Nominal Wall Thickness | |||||||
Super Duplex SS Fittings Angularity Tolerance
| NOMINAL PIPE SIZE NPS | ANGULARITY TOLERANCES | ANGULARITY TOLERANCES |
|---|---|---|
| Off Plane P | Off Angle Q | |
| ½ to 4 | 0.06 | 0.03 |
| 5 to 8 | 0.12 | 0.06 |
| 10 to 12 | 0.19 | 0.09 |
| 14 to 16 | 0.25 | 0.09 |
| 18 to 24 | 0.38 | 0.12 |
| 26 to 30 | 0.38 | 0.19 |
| 32 to 42 | 0.50 | 0.19 |
| 44 to 48 | 0.75 | 0.18 |
Hot forming of Super Duplex Pipe Fittings
SDSS Buttweld Fittings should be heat worked between 1875°F and 2250°F. After that, a solution anneal at a minimum of 1925°F and a fast air or water quench are required.
