SS Cold Drawn Rod manufacturer in India
Table of Content
View Tolerance of ASTM A276 Forged Bar and Cold Drawn Bar
Sizes & Strength of Stainless Steel Round Bar
Stainless Steel round bar diameter
- 3 – 800mm
Hex bar sizes
- 4 to 100mm
Flat bar size chart
- 3/8' - 4'
SS bar length
- Up to 20 feet or custom length
ASTM Standard
- ASTM A479
- ASME SA479
Precision straightness of ASTM A276 Forged Bar
- 0.0015″ TIR/FT
- 0.006″ TIR/FT
Melting point
- 1,400 to 1,530 °C
Tensile strength of SS Annealed bar
- 515 MPa
Custom Size/ Cut to Length
- Mail us at info@namanpipe.com
Available Standard
- ASTM A479
- NACE MRO175
- ASTM A923 test
- ASTM A182
- API
- ISO 15156
- ASTM A276 Condition A
Refer sizes and length of Stainless Steel Annealed Bar and Cold Drawn Rod
ASTM A276 Forged Bar Specification
Material Grade
- Stainless Steel
ASTM A276 SS Bar manufacturing technique
- Hot Rolled
- Cold Drawn
- Forged
Stainless Steel Black Bar tolerances
- G5
- G6
- D8
- D9
ISO tolerances
- H6
- H7
- H8
- H9
- H10
- H11
Stainless Steel Flat Bar delivery condition
- Precision ground
- Smooth turned
- Polished bar
- Cold drawn
- Peeled
- Slit rolled edge
- Hot rolled
- Bright drawn
- Hot rolled annealed
- Rough turned
- Bright bar
- Grinding
- Centreless ground
Value added services
- Press Straightening
- Heat Treating
- Centerless Turning
- Chrome Plating
- CNC Machining
- Pre-Straightening
- Saw Cutting
- Rotary Straightening
- Custom Packaging
- Press Straightening
- End Conditioning
- Centerless Grinding
Origin of material
- Japanese
- Russian
- USA
- Korean
- European
- Indian
- Ukraine
Heat Treatment
- Solution Annealing
- Soft Annealing
- Hardening & Tempering & Normalizing
- Oil & Water Quenching
Types of SS Rod
- Solution annealed bar
- Machined bar
- Ground bar
- Forged bar
- Polished bar
- cold finished bar
- TGP bar
SS Polished Bar Density
- 7.5kg/m3 to 8.0kg/m3
SS Hexagonal Bar Temperature Range
- 870°C
Applications
- Automobile Industry
- Chemical Industry
- Food Processing Industry
ASTM A276 SS Bright Drawn Round Bar and Hexagonal Bars are used for structural applications, View testing requirements
Testing requirements of SS Rod
SS Forged Bar European standard
- BS EN 10088-3
- EN 10272
- EN 10088-3
Packaging
- Paper wrapping
- Wood crates and shields
- Wooden boxes
- Box
Testing standards
- ASTM A-388
- SEP 1920:1984 (class A, B,C)
- MIL STD 2154
- EN 10278 – ISO 286-2
Delivery documents for Cold Drawn SS Round Bar
- Letter of Gurantee
- Raw Material Test Reports
- Welding Procedure Specification
- Quality Assurance Plan (QAP)
- NABL approved Laboratory Test Reports
- Heat Treatment Charts
- Fumigation Certificates
Testing Methods
- Compression test
- Bending test
- Failure Analysis
- Rockwell hardness test
- Impact test
- PMI
- Tensile test
- Brinell hardness test
- Non Destructive Testing
- Mechanical Testing
Stainless Steel Black Bar and Hot Rolled Bars ranges from 1/8” to 24” in diameter, View Weight Chart
Weight Of SS Round Bar
| Dia (mm) | Weight | Dia | Weight |
|---|---|---|---|
| (mm) | per metre (kg) | (in) | per metre (kg) |
| 3 | 0.06 | 1/8" | 0.06 |
| 5 | 0.16 | 1/4" | 0.25 |
| 4 | 0.10 | 3/16" | 0.14 |
| 6 | 0.22 | 5/16" | 0.39 |
| 8 | 0.40 | 7/16" | 0.77 |
| 7 | 0.30 | 3/8" | 0.56 |
| 10 | 0.62 | 1/2" | 1.00 |
| 14 | 1.22 | 5/8" | 1.56 |
| 12 | 0.89 | 9/16" | 1.22 |
| 15 | 1.40 | 11/16" | 1.89 |
| 18 | 2.01 | 7/8" | 3.07 |
| 16 | 1.59 | 3/4" | 2.25 |
| 20 | 2.48 | 1" | 4.03 |
| 22 | 3.00 | ||
| 24 | 3.57 | ||
| 25 | 3.88 |
Types Of Stainless Steel Bar
Stainless Steel Hex Bar
Cold Drawn Stainless Steel Round Bar

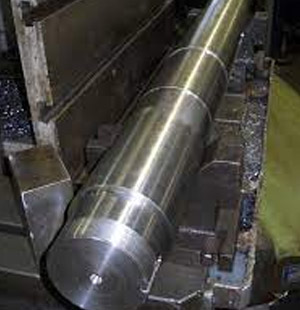

Stainless Steel Shaft
Half Round Stainless Steel Bar
Stainless Steel Flat Bar
Stainless Steel Hexagonal Bar
Hot Rolled Stainless Steel Flat Bar
Stainless Steel Half Round Bar
Stainless Steel Round Bar
Rolled Stainless Steel Round Bar

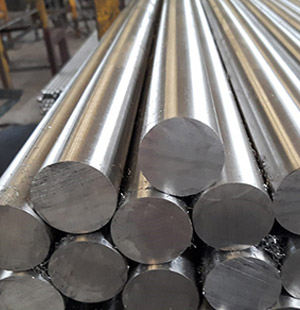

Stainless Steel Bar
Stainless Steel Linear Shaft

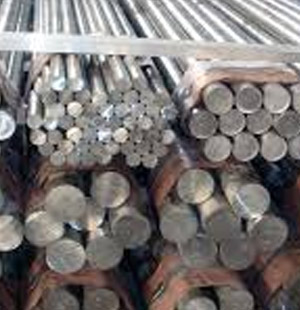

Large Diameter Stainless Steel Round Bar
Stainless Steel Hex Shaft
Brushed Stainless Steel Square Bar
Polished Stainless Steel Round Bar

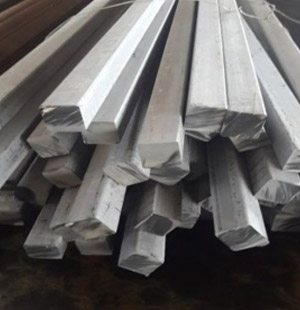

Precision Ground Stainless Steel Square Bar
Precision Ground Stainless Steel Round Bar
Stainless Steel Flat Half Round Bar
Marine Grade Stainless Steel Flat Bar
Mirror Finish Stainless Steel Flat Bar
Cold Rolled Stainless Steel Flat Bar
Stainless Steel Prop Shaft
Heavy Duty Stainless Steel Flat Bar
Precision Ground Stainless Steel Flat Bar
Stainless Steel Square Bar
Hot Rolled Stainless Steel Round Bar
Stainless Steel Propeller Shaft
Stainless Steel Angle Bar

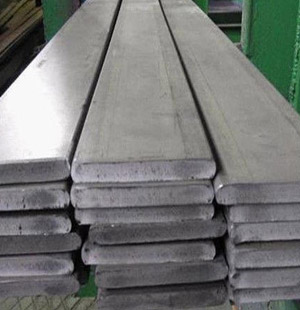

Cold Drawn Stainless Steel Flat Bar
A Certified American/ British/ European standard Stainless Steel Round Bar manufacturer in Mumbai, contact Now for a free sample!
Stainless Steel Bar Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| 317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 57.845 min | ||||
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 11.00 15.00 | 57.89 min | |||
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 5(C+N) 0.70 max | |||
| SS 321H | 0.04 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 4(C+N) 0.70 max | |||
| 347/ 347H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 20.00 | 9.0013.00 | |||||
| 410 | min. | 11.5 | ||||||||||
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||||
| 446 | min. | 23.0 | 0.10 | |||||||||
| max. | 0.2 | 1.5 | 0.75 | 0.040 | 0.030 | 30.0 | 0.50 | 0.25 | ||||
| 904L | min. | 19.0 | 4.00 | 23.00 | 0.10 | |||||||
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |||
Stainless Steel Shaft Mechanical Properties
| Grade | Elongation | Melting Point | Yield Strength (0.2%Offset) | Density | Tensile Strength |
| 304/ 304L | 35 % | 1400 °C (2550 °F) | Psi 30000 , MPa 205 | 8.0 g/cm3 | Psi 75000 , MPa 515 |
| 304H | 40 % | 1400 °C (2550 °F) | Psi 30000 , MPa 205 | 8.0 g/cm3 | Psi 75000 , MPa 515 |
| 316/ 316H | 35 % | 1400 °C (2550 °F) | Psi 30000 , MPa 205 | 8.0 g/cm3 | Psi 75000 , MPa 515 |
| 317 | 35 % | 1400 °C (2550 °F) | Psi 30000 , MPa 205 | 7.9 g/cm3 | Psi 75000 , MPa 515 |
| 316L | 35 % | 1399 °C (2550 °F) | Psi 30000 , MPa 205 | 8.0 g/cm3 | Psi 75000 , MPa 515 |
| 310 / 310S / 310H | 40 % | 1402 °C (2555 °F) | Psi 30000 , MPa 205 | 7.9 g/cm3 | Psi 75000 , MPa 515 |
| 321 | 35 % | 1457 °C (2650 °F) | Psi 30000 , MPa 205 | 8.0 g/cm3 | Psi 75000 , MPa 515 |
| 904L | 35 % | 1350 °C (2460 °F) | Psi 32000 , MPa 220 | 7.95 g/cm3 | Psi 71000 , MPa 490 |
| 347 | 35 % | 1454 °C (2650 °F) | Psi 30000 , MPa 205 | 8.0 g/cm3 | Psi 75000 , MPa 515 |
Manufacturer of SS Forged Bar and Stainless Steel Spring Bar in India, check New price list of Stainless Steel Bar in Mumbai
SS Rod Equivalent Grade
| STANDARD | UNS | JIS | EN | AFNOR | WERKSTOFF NR. | BS | GOST |
| 304 | S30400 | SUS 304 | X5CrNi18-10 | Z7CN18‐09 | 1.4301 | 304S31 | 08Х18Н10 |
| 304L | S30403 | SUS 304L | X2CrNi18-9 / X2CrNi19-11 | Z3CN18‐10 | 1.4306 / 1.4307 | 3304S11 | 03Х18Н11 |
| 304H | S30409 | - | - | - | 1.4301 | - | - |
| 310 | S31000 | SUS 310 | X15CrNi25-20 | - | 1.4841 | 310S24 | 20Ch25N20S2 |
| 310S | S31008 | SUS 310S | X8CrNi25-21 | - | 1.4845 | 310S16 | 20Ch23N18 |
| 310H | S31009 | - | - | - | - | - | - |
| 316 | S31600 | SUS 316 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | Z7CND17‐11‐02 | 1.4401 / 1.4436 | 316S31 / 316S33 | - |
| 316L | S31603 | SUS 316L | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 1.4404 / 1.4435 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 |
| 316H | S31609 | - | - | - | 1.4401 | - | - |
| 316Ti | S31635 | SUS 316Ti | X6CrNiMoTi17-12-2 | Z6CNDT17‐123 | 1.4571 | 320S31 | 08Ch17N13M2T |
| 317 | S31700 | SUS 317 | - | - | 1.4449 | - | - |
| 317L | S31703 | SUS 317L | X2CrNiMo18-15-4 | - | 1.4438 | - | - |
| 321 | S32100 | SUS 321 | X6CrNiTi18-10 | - | 1.4541 | - | - |
| 321H | S32109 | SUS 321H | X12CrNiTi18-9 | - | 1.4878 | - | - |
| 347 | S34700 | SUS 347 | X6CrNiNb18-10 | - | 1.4550 | - | 08Ch18N12B |
| 347H | S34709 | SUS 347H | X6CrNiNb18-12 | - | 1.4961 | - | - |
| 904L | N08904 | SUS 904L | X1NiCrMoCu25-20-5 | Z2 NCDU 25-20 | 1.4539 | 904S13 | STS 317J5L |
Stainless Steel Round Bar Diameter Tolerances
| Section | Size | Permitted variation |
| Round | >=6 <=18 >18 <=30 >30 <=50 >50 <=80 >80 <=100 | 0.07 0.085 0.10 0.12 0.14 |
ASTM A276 Round Bar Diameters
| H&T | Hardened and tempered. |
| PH | Precipitation hardened. |
| ANN | Annealed |
Stainless Steel Round Bar Finishes
| P | Polished | CD | Cold drawn |
| HF | Hot finished | CG | Centreless ground |
| PR | Peeled and reeled | ST | Smooth turned |
| HRAP | Hot rolled annealed and pickled | CF | Cold finished |
| SRE | Slit rolled edge | BD | Bright drawn |
| RT | Rough turned/peeled | P&T | Peeled and turned |
Stainless Steel Round Bar Sizes
| Size | Chucked true to ID | Chucked true to OD | |||||||
|---|---|---|---|---|---|---|---|---|---|
| OD, mm | ID, mm | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. | Max. OD, mm | Min. ID, mm | Max. OD, in. | Min. ID, in. |
| 32 | 20 | 30 | 21 | 1.185 | 0.827 | 31 | 21.9 | 1.220 | 0.862 |
| 32 | 16 | 30 | 17 | 1.181 | 0.669 | 31 | 18 | 1.220 | 0.709 |
| 36 | 25 | 34.1 | 26 | 1.343 | 1.024 | 35 | 26.9 | 1.378 | 1.059 |
| 36 | 20 | 34 | 21 | 1.339 | 0.827 | 35 | 22 | 1.378 | 0.866 |
| 36 | 16 | 33.9 | 17 | 1.335 | 0.669 | 35 | 18.1 | 1.378 | 0.713 |
| 40 | 28 | 38.1 | 29 | 1.500 | 1.142 | 39 | 29.9 | 1.535 | 1.177 |
| 40 | 25 | 38 | 26 | 1.496 | 1.024 | 39 | 27 | 1.535 | 1.063 |
| 40 | 20 | 37.9 | 21 | 1.492 | 0.827 | 39 | 22.1 | 1.535 | 0.870 |
| 45 | 32 | 43.1 | 33 | 1.697 | 1.299 | 44 | 33.9 | 1.732 | 1.335 |
| 45 | 28 | 43 | 29 | 1.693 | 1.142 | 44 | 30 | 1.732 | 1.181 |
| 45 | 20 | 42.8 | 21 | 1.685 | 0.827 | 44 | 22.2 | 1.732 | 0.874 |
| 50 | 36 | 48 | 37 | 1.890 | 1.457 | 49 | 38 | 1.929 | 1.496 |
| 50 | 32 | 47.9 | 33 | 1.886 | 1.299 | 49 | 34.1 | 1.929 | 1.343 |
| 50 | 25 | 47.8 | 26 | 1.882 | 1.024 | 49 | 27.2 | 1.929 | 1.071 |
| 56 | 40 | 54 | 41 | 2.126 | 1.614 | 55 | 42 | 2.165 | 1.654 |
| 56 | 36 | 53.9 | 37 | 2.122 | 1.457 | 55 | 38.1 | 2.165 | 1.500 |
| 56 | 28 | 53.7 | 29 | 2.114 | 1.142 | 55 | 30.3 | 2.165 | 1.193 |
| 63 | 50 | 61.1 | 51 | 2.406 | 2.008 | 62 | 51.9 | 2.441 | 2.043 |
| 63 | 45 | 61 | 46 | 2.402 | 1.811 | 62 | 47 | 2.441 | 1.850 |
| 63 | 40 | 60.8 | 41 | 2.394 | 1.614 | 62 | 42.2 | 2.441 | 1.661 |
| 63 | 36 | 60.7 | 37 | 2.390 | 1.457 | 62 | 38.3 | 2.441 | 1.508 |
| 63 | 32 | 60.6 | 33 | 2.386 | 1.299 | 62 | 34.4 | 2.441 | 1.354 |
| 71 | 56 | 68.9 | 57 | 2.713 | 2.244 | 69.9 | 58 | 2.752 | 2.283 |
| 71 | 45 | 68.6 | 46 | 2.701 | 1.811 | 69.9 | 47.3 | 2.752 | 1.862 |
| 71 | 40 | 68.5 | 41 | 2.697 | 1.614 | 69.9 | 42.4 | 2.752 | 1.669 |
| 71 | 36 | 68.4 | 37 | 2.693 | 1.457 | 69.9 | 38.5 | 2.752 | 1.516 |
| 75 | 60 | 72.8 | 61 | 2.866 | 2.402 | 73.8 | 62 | 2.906 | 2.441 |
| 75 | 50 | 72.6 | 51 | 2.858 | 2.008 | 73.8 | 52.2 | 2.906 | 2.055 |
| 75 | 40 | 72.3 | 41 | 2.846 | 1.614 | 73.8 | 42.5 | 2.906 | 1.673 |
| 80 | 63 | 77.8 | 64 | 3.063 | 2.520 | 78.8 | 65 | 3.102 | 2.559 |
| 80 | 50 | 77.4 | 51 | 3.047 | 2.008 | 78.8 | 52.4 | 3.102 | 2.053 |
| 80 | 45 | 77.3 | 46 | 3.043 | 1.811 | 78.8 | 47.5 | 3.102 | 1.870 |
| 80 | 40 | 77.2 | 41 | 3.039 | 1.614 | 78.8 | 42.6 | 3.102 | 1.677 |
| 85 | 67 | 82.6 | 68 | 3.252 | 2.677 | 83.7 | 69.1 | 3.295 | 2.720 |
| 85 | 55 | 82.3 | 56.0 | 3.240 | 2.205 | 83.7 | 57.4 | 3.295 | 2.260 |
| 85 | 45 | 82.1 | 46.0 | 3.232 | 1.811 | 83.7 | 47.6 | 3.295 | 1.874 |
| 90 | 71 | 87.6 | 72.1 | 3.449 | 2.839 | 88.6 | 73.1 | 3.488 | 2.878 |
| 90 | 63 | 87.3 | 64.0 | 3.437 | 2.520 | 88.6 | 65.3 | 3.488 | 2.571 |
| 90 | 56 | 87.1 | 57.0 | 3.429 | 2.244 | 88.6 | 58.5 | 3.488 | 2.303 |
| 90 | 50 | 87.0 | 51.0 | 3.425 | 2.008 | 88.6 | 52.6 | 3.488 | 2.071 |
| 95 | 75 | 92.4 | 76.2 | 3.641 | 2.997 | 93.5 | 77.3 | 3.681 | 3.041 |
| 95 | 67 | 92.2 | 68.0 | 3.630 | 2.677 | 93.5 | 69.3 | 3.681 | 2.728 |
| 95 | 50 | 91.8 | 51.0 | 3.614 | 2.008 | 93.5 | 52.7 | 3.681 | 2.075 |
| 100 | 80 | 97.4 | 81.2 | 3.835 | 3.197 | 98.5 | 82.3 | 3.878 | 3.240 |
| 100 | 71 | 97.2 | 72.1 | 3.827 | 2.839 | 98.5 | 73.4 | 3.878 | 2.890 |
| 100 | 63 | 97.0 | 64.0 | 3.819 | 2.520 | 98.5 | 65.5 | 3.878 | 2.579 |
| 100 | 56 | 96.8 | 57.0 | 3.811 | 2.244 | 98.5 | 58.7 | 3.878 | 2.311 |
| 106 | 80 | 103.1 | 81.2 | 4.059 | 3.197 | 104.4 | 82.5 | 4.110 | 3.248 |
| 106 | 71 | 103.0 | 72.1 | 4.055 | 2.839 | 104.4 | 73.5 | 4.110 | 2.894 |
| 106 | 63 | 102.7 | 64.0 | 4.043 | 2.520 | 104.4 | 65.7 | 4.110 | 2.587 |
| 106 | 56 | 102.5 | 57.0 | 4.035 | 2.244 | 104.4 | 58.9 | 4.110 | 2.319 |
| 112 | 90 | 109.2 | 91.4 | 4.299 | 3.598 | 110.3 | 92.5 | 4.343 | 3.642 |
| 112 | 80 | 108.9 | 81.2 | 4.287 | 3.197 | 110.3 | 82.6 | 4.343 | 3.252 |
| 112 | 71 | 108.7 | 72.1 | 4.280 | 2.839 | 110.3 | 73.7 | 4.343 | 2.902 |
| 112 | 63 | 108.5 | 64.0 | 4.272 | 2.520 | 110.3 | 65.8 | 4.343 | 2.591 |
| 118 | 90 | 114.9 | 91.4 | 4.524 | 3.598 | 116.2 | 92.7 | 4.575 | 3.650 |
| 118 | 80 | 114.6 | 81.2 | 4.512 | 3.197 | 116.2 | 82.8 | 4.575 | 3.260 |
| 118 | 71 | 114.5 | 72.1 | 4.508 | 2.839 | 116.2 | 73.8 | 4.575 | 2.906 |
| 118 | 63 | 114.2 | 64.0 | 4.496 | 2.520 | 116.2 | 66.0 | 4.575 | 2.598 |
| 125 | 100 | 121.9 | 101.5 | 4.799 | 3.996 | 123.1 | 102.7 | 4.846 | 4.043 |
| 125 | 90 | 121.7 | 91.4 | 4.791 | 3.598 | 123.1 | 92.8 | 4.846 | 3.654 |
| 125 | 80 | 121.4 | 81.2 | 4.780 | 3.197 | 123.1 | 82.9 | 4.846 | 3.264 |
| 125 | 71 | 121.3 | 72.1 | 4.772 | 2.839 | 123.1 | 74.0 | 4.846 | 2.913 |
| 132 | 106 | 128.8 | 107.6 | 5.071 | 4.236 | 130.0 | 108.8 | 5.118 | 4.283 |
| 132 | 90 | 128.4 | 91.4 | 5.055 | 3.598 | 130.0 | 93.0 | 5.118 | 3.661 |
| 132 | 80 | 128.1 | 81.2 | 5.043 | 3.197 | 130.0 | 83.1 | 5.118 | 3.272 |
| 132 | 71 | 121.2 | 72.1 | 5.035 | 2.839 | 130.0 | 74.2 | 5.118 | 2.921 |
| 140 | 112 | 136.6 | 113.7 | 5.378 | 4.476 | 137.9 | 115 | 5.429 | 4.528 |
| 140 | 100 | 136.3 | 101.5 | 5.366 | 3.996 | 137.9 | 103.1 | 5.429 | 4.059 |
| 140 | 90 | 136.1 | 91.4 | 5.358 | 3.598 | 137.9 | 93.2 | 5.429 | 3.669 |
| 140 | 80 | 135.8 | 81.2 | 5.346 | 3.197 | 137.9 | 83.3 | 5.429 | 3.280 |
| 150 | 125 | 146.5 | 126.9 | 5.768 | 4.996 | 147.7 | 128.1 | 5.815 | 5.043 |
| 150 | 106 | 146 | 107.6 | 5.748 | 4.236 | 147.7 | 109.3 | 5.815 | 4.303 |
| 150 | 95 | 145.7 | 96.4 | 5.736 | 3.795 | 147.7 | 98.4 | 5.815 | 3.874 |
| 150 | 80 | 145.3 | 81.2 | 5.720 | 3.197 | 147.7 | 83.6 | 5.815 | 3.291 |
| 160 | 132 | 156.3 | 134 | 6.154 | 5.276 | 157.6 | 135.3 | 6.205 | 5.327 |
| 160 | 122 | 156 | 123.8 | 6.142 | 4.874 | 157.6 | 125.4 | 6.205 | 4.937 |
| 160 | 112 | 155.8 | 113.7 | 6.134 | 4.476 | 157.6 | 115.5 | 6.205 | 4.547 |
| 160 | 90 | 155.2 | 91.4 | 6.110 | 3.598 | 157.6 | 94.0 | 6.205 | 3.701 |
| 170 | 140 | 166 | 142.1 | 6.535 | 5.594 | 167.4 | 143.5 | 6.591 | 5.650 |
| 170 | 130 | 165.8 | 132 | 6.528 | 5.197 | 167.4 | 133.6 | 6.591 | 5.260 |
| 170 | 128 | 165.7 | 130 | 6.524 | 5.118 | 167.4 | 131.6 | 6.591 | 5.181 |
| 170 | 118 | 165.5 | 119.8 | 6.516 | 4.717 | 167.4 | 121.7 | 6.591 | 4.791 |
| 170 | 106 | 165.2 | 107.6 | 6.504 | 4.236 | 167.4 | 109.8 | 6.591 | 4.323 |
| 170 | 100 | 165 | 101.5 | 6.496 | 3.996 | 167.4 | 103.9 | 6.591 | 4.091 |
| 180 | 150 | 176 | 152.3 | 6.929 | 5.996 | 177.3 | 153.6 | 6.980 | 6.047 |
| 180 | 140 | 175.7 | 142.1 | 6.917 | 5.594 | 177.3 | 143.7 | 6.980 | 5.657 |
| 180 | 125 | 175.3 | 126.9 | 6.902 | 4.996 | 177.3 | 128.9 | 6.980 | 5.075 |
| 180 | 100 | 174.7 | 101.5 | 6.878 | 3.996 | 177.3 | 104.1 | 6.980 | 4.098 |
| 190 | 160 | 185.7 | 162.4 | 7.311 | 6.394 | 187.1 | 163.8 | 7.366 | 6.449 |
| 190 | 150 | 185.5 | 152.3 | 7.303 | 5.996 | 187.1 | 153.9 | 7.366 | 6.059 |
| 190 | 132 | 185.1 | 134 | 7.287 | 5.276 | 187.1 | 136 | 7.366 | 5.354 |
| 200 | 170 | 195.6 | 172.6 | 7.701 | 6.795 | 197.0 | 173.9 | 7.756 | 6.846 |
| 200 | 160 | 195.4 | 162.4 | 7.693 | 6.394 | 197.0 | 164 | 7.756 | 6.457 |
| 200 | 150 | 195.2 | 152.3 | 7.685 | 5.996 | 197.0 | 154.1 | 7.756 | 6.067 |
| 200 | 140 | 194.9 | 142.1 | 7.673 | 5.594 | 197.0 | 144.2 | 7.756 | 5.677 |
| 212 | 170 | 207.2 | 172.6 | 8.157 | 6.795 | 208.8 | 174.2 | 8.220 | 6.858 |
| 212 | 150 | 206.6 | 152.3 | 8.133 | 5.997 | 208.8 | 154.4 | 8.220 | 6.079 |
| 212 | 130 | 206.2 | 132 | 8.118 | 5.197 | 208.8 | 134.6 | 8.220 | 5.299 |
| 224 | 180 | 218.9 | 182.7 | 8.618 | 7.193 | 220.6 | 184.4 | 8.685 | 7.260 |
| 224 | 140 | 217.9 | 142.1 | 8.579 | 5.594 | 220.6 | 144.8 | 8.685 | 5.701 |
| 236 | 190 | 230.7 | 192.9 | 9.083 | 7.594 | 232.4 | 194.6 | 9.150 | 7.661 |
| 236 | 150 | 229.7 | 152.3 | 9.043 | 5.996 | 232.4 | 155.0 | 9.150 | 6.102 |
| 250 | 200 | 244.3 | 203.0 | 9.618 | 7.992 | 246.2 | 204.9 | 9.693 | 8.067 |
| 275 | 200 | 266.5 | 203.0 | 10.492 | 7.992 | 268.9 | 205.4 | 10.587 | 8.087 |
SS Flat Bar Weight Chart
| Size (mm) | Weight (Kg/mtr) | Weight (kg/ft) |
| 12 x 3 | 0.282 | 0.086 |
| 12 x 5 | 0.470 | 0.143 |
| 18 x 4 | 0.585 | 0.180 |
| 20 x 3 | 0.470 | 0.143 |
| 20 x 5 | 0.790 | 0.241 |
| 20 x 6 | 0.942 | 0.287 |
| 25 x 3 | 0.600 | 0.183 |
| 25 x 5 | 1.000 | 0.305 |
| 25 x 6 | 1.197 | 0.365 |
| 25 x 8 | 1.550 | 0.470 |
| 25 x 10 | 1.998 | 0.609 |
| 25 x 12 | 2.398 | 0.731 |
| 32 x 3 | 0.798 | 0.243 |
| 32 x 5 | 1.296 | 0.395 |
| 32 x 6 | 0.457 | 0.457 |
| 32 x 8 | 2.202 | 0.671 |
| 32 x 10 | 2.802 | 0.854 |
| 32 x 12 | 3.297 | 1.005 |
| 32 x 16 | 4.403 | 1.342 |
| 40 x 3 | 0.899 | 0.274 |
| 40 x 5 | 1.598 | 0.487 |
| 40 x 6 | 1.903 | 0.580 |
| 40 x 8 | 2.500 | 0.762 |
| 40 x 10 | 3.100 | 0.945 |
| 40 x 12 | 3.799 | 1.158 |
| 40 x 16 | 4.997 | 1.523 |
| 40 x 20 | 6.300 | 1.920 |
| 40 x 25 | 7.897 | 2.407 |
| 40 x 32 | 9.505 | 2.897 |
| 50 x 3 | 1.197 | 0.365 |
| 50 x 5 | 1.998 | 0.609 |
| 50 x 6 | 2.398 | 0.731 |
| 50 x 8 | 3.097 | 0.944 |
| 50 x 10 | 3.898 | 1.188 |
| 50 x 12 | 4.698 | 1.432 |
| 50 x 16 | 6.300 | 1.920 |
| 50 x 20 | 7.799 | 2.377 |
| 50 x 25 | 9.797 | 2.986 |
| 50 x 40 | 15.598 | 4.754 |
| 63 x 6 | 3.002 | 0.915 |
| 63 x 8 | 4.000 | 1.219 |
| 63 x 10 | 4.922 | 1.500 |
| 63 x 12 | 5.899 | 1.798 |
| 63 x 16 | 7.897 | 2.407 |
| 63 x 20 | 9.899 | 3.017 |
| 63 x 25 | 12.399 | 3.779 |
| 63 x 32 | 15.798 | 4.815 |
| 63 x 40 | 19.798 | 6.034 |
| 75 x 6 | 3.498 | 1.066 |
| 75 x 8 | 4.698 | 1.432 |
| 75 x 10 | 5.899 | 1.798 |
| 75 x 12 | 7.097 | 2.163 |
| 75 x 16 | 9.397 | 2.864 |
| 75 x 20 | 11.798 | 3.596 |
| 75 x 25 | 14.699 | 4.480 |
| 75 x 40 | 23.600 | 7.200 |
| 100 x 6 | 4.698 | 1.432 |
| 100 x 8 | 6.300 | 1.920 |
| 100 x 10 | 7.798 | 2.377 |
| 100 x 12 | 9.397 | 2.864 |
| 100 x 16 | 12.599 | 3.840 |
| 100 x 20 | 15.700 | 4.785 |
| 100 x 25 | 19.599 | 5.973 |
| 100 x 32 | 25.099 | 7.650 |
| 100 x 40 | 31.170 | 9.500 |
| 125 x 6 | 5.900 | 1.800 |
| 125 x 8 | 7.900 | 2.400 |
| 125 x 10 | 9.797 | 2.986 |
| 125 x 12 | 11.798 | 3.596 |
| 125 x 16 | 15.750 | 4.800 |
| 125 x 20 | 19.597 | 5.973 |
| 125 x 25 | 24.600 | 7.500 |
| 125 x 32 | 31.399 | 9.570 |
| 150 x 6 | 7.218 | 2.200 |
| 150 x 8 | 9.400 | 2.850 |
| 150 x 10 | 11.798 | 3.596 |
| 150 x 12 | 14.098 | 4.297 |
| 150 x 16 | 18.797 | 5.729 |
| 150 x 20 | 23.597 | 7.192 |
| 150 x 25 | 29.499 | 8.991 |
| 150 x 32 | 37.699 | 11.490 |
| 150 x 40 | 47.099 | 14.355 |
Tolerances of Turned Steel ASTM A276 Round Bar
| Turned ASTM A276 material Tolerances | |
|---|---|
| ASTM A276 material Size, diameter | Permitted variation |
| mm | mm |
| ≧ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 120 > 120 ≦ 180 > 180 ≦ 250 > 250 ≦ 315 > 315 ≦ 400 > 400 | + 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 + 0 to - 0.160 + 0 to - 0.185 + 0 to - 0.210 + 0 to - 0.230 + 0 to - 0.250 |
Stainless Steel Flat Bar Tolerances
| Section | Size (MM) | Permitted variation (MM) |
| Flat (Width) | <=18 >18 <=30 >30 <=50 >50 <=80 >80 <=100 >100 <=130 >130 <=320 | 0.11 0.13 0.16 0.19 0.22 0.35 1.0 |
| Flat (Thickness) | <=18 >18 <=30 >30 <=50 >50 <=80 | 0.11 0.13 0.25 0.35 |
Standard Sizes Of Stainless Steel Flat Bar
| Size (inch) | sizes in mm | Thickness (in Inches) | Thickness (mm) |
|---|---|---|---|
| 7/8 | 22 | 2/3 - 5/7 | 17 & 18 |
| 1 | 25 | 3/16 - 4/5 | 5 to 20 |
| 1-3/16 | 30 | 3/16 - 4/5 | 5 to 20 |
| 1-1/4 | 32 | 1/4 - 4/5 | 6 to 20 |
| 1-3/8 | 35 | 3/16 - 3/16 | 5 to 20 |
| 1-4/7 | 40 | 3/16 - 1 | 5 to 25 |
| 1-7/9 | 45 | 3/16 - 1 | 5 to 25 |
| 1-6/7 | 47 | 2/3, 1 & 1-1/4 | 17,25 & 32 |
| 2 | 50 | 3/16 - 1-1/4 | 5 to 32 |
| 2-1/16 | 55 | 3/16 - 1 | 5 to 25 |
| 2-1/4 | 57 | 1-1/4 | 32 |
| 2-3/8 | 60 | 3/16 - 1-3/8 | 5 to 35 |
| 2-1/2 | 63 | 3/8 - 1-3/16 | 10 to 30 |
| 2-5/9 | 65 | 3/8 - 1-3/16, & 1-3/8 | 10 to 30 & 35 |
| 2-3/4 | 70 | 1/4 - 1, & 1-4/7 | 6 to 25 & 40 |
| 3 | 75 | 5/16 - 1 | 8 to 25 |
| 3-1/8 | 80 | 5/16 - 4/5 | 8 to 20 |
| 3-1/2 | 90 | 5/16- 4/5 | 8 to 20 |
| 4 | 100 | 5/16, 3/8, 1/2 | 8, 10, 12 |
Stainless Steel Hexagon Bar Sizes
| Item | Size |
| H-1/8" | 1/8" |
| H-5/32" | 5/32" |
| H-3/16" | 3/16" |
| H-7/32" | 7/32" |
| H-1/4" | 1/4" |
| H-5/16" | 5/16" |
| H-3/8" | 3/8" |
| H-7/16" | 7/16" |
| H-1/2" | 1/2" |
| H-9/16" | 9/16" |
| H-5/8" | 5/8" |
| H-11/16" | 11/16" |
| H-3/4" | 3/4" |
| H-7/8" | 7/8" |
| H-1" | 1" |
| H-1-1/8" | 1-1/8" |
| H-1-1/4" | 1-1/4" |
| H-1-3/8" | 1-3/8" |
| H-1-1/2" | 1-1/2" |
| H-1-5/8" | 1-5/8" |
| H-1-3/4" | 1-3/4" |
| H-1-7/8" | 1-7/8" |
| H-2" | 2" |
| H-2-1/4" | 2-1/4" |
| H-2-1/2" | 2-1/2" |
| H-2-3/4" | 2-3/4" |
| H-3" | 3" |
Service Temperature of Various Grades of Stainless Steel Hexagon Bars
| Grade | Intermittent service temperature | Continuous service temperature |
| 304 | 1600°F | 1700°F |
| (870°C) | (925°C) | |
| 316 | 1600°F | 1700°F |
| (870°C) | (925°C) | |
| 309 | 1800°F | 2000°F |
| (980°C) | (1095°C) | |
| 310 | 1900°F | 2100°F |
| (1035°C) | (1150°C) | |
| 410 | 1500°F | 1300°F |
| (815°C) | (705°C) | |
| 420 | 1350°F | 1150°F |
| (735°C) | (620°C) | |
| 430 | 1600°F | 1500°F |
| (870°C) | (815°C) |
Stainless Steel Hex Bar Tolerance
| Section | Size (MM) | Permitted variation (MM) |
| Hexagon | >=6 <=18 >18 <=30 >30 <=50 >50 <=80 >80 <=105 | 0.09 0.11 0.13 0.16 0.25 |
SS Square Bar Weight Chart
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
|
| ||||||
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
|
| ||||||
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Stainless Steel Square Bar Tolerances
| SIZE mm | PERMITTED VARIATION | |||
PRIMARY – ROLLED | RE-ROLLED | |||
| DIAMETER +/- mm | OUT OF SECTION mm | DIAMETER OR WIDTH ACROSS FLATS +/- mm | OUT OF SECTION mm | |
| <=16 | 0.2 | 0.3 | ||
| >16 <=26 | 0.3 | 0.5 | ||
| >26 <=38 | 0.4 | 0.6 | ||
| >38 <=51 | 0.5 | 0.8 | ||
| >51 <=64 | 0.6 | 0.9 | ||
| >64 <=76 | 0.7 | 1.1 | ||
| >76 <=90 | 1.3 | 2.0 | ||
| >90 <=120 | 1.5 | 2.3 | ||
| >120 <=160 | 2.0 | 3.0 | ||
| >160 <=200 | 2.5 | 3.8 | ||
| >200 | 3.0 | 4.5 | ||
How To Calculate Weight Of SS Round Bar
| Weight of S.S. Round Bar. Dia ( mm ) X Dia (mm ) X 0.00623=Wt. Per. Mtr. Dia ( mm ) X Dia (mm ) X 0.0019=Wt. Per. Feet. |
| Weight of S.S. Square Bar Dia ( mm ) X Dia ( mm ) X 0.00788=Wt. Per. Mtr Dia ( mm ) X Dia ( mm ) X 0.0024=Wt.Per. Feet. |
| Weight of S.S. Hexagonal Bar Dia ( mm ) X Dia ( mm ) X 0.00680=Wt. Per.Mtr Width ( mm ) X Dia ( mm ) X 0.002072=Wt. Per Feet |
| Weight of S.S. Flat Bar Width (mm ) X Thick ( mm ) X 0.00798=Wt.Per Mtr. Width (mm ) X Thick ( mm ) X 0.00243=Wt.Per Feet. |
Stainless Steel Round Bars Hs Code
| HS Code | 722230 | Bars and rods of stainless steel, cold-formed or cold-finished and further worked, or not further worked than forged |
Stainless Steel Bar Application
