SS 304 Tee & Stainless Steel Buttweld Fittings manufacturer in India, check SS Pipe Fittings price in Mumbai

Fittings are components that play a critical role in influencing the characteristics of the flow. Stainless Steel Pipe Fittings are fixtures that help route the flow, join fixtures of different sizes, and terminate the flow in the system. The versatile SS Pipe Fittings have excellent tolerance to reducing acids and corrosive media. These fittings work well in elevated pressure and temperature applications. They are commonly designed in 304 and 316 specifications. The SS 316 Pipe Fittings are designed with a superior composition of nickel, chromium, and molybdenum, giving them good corrosion and oxidation resistance properties. The SS 304 Pipe Fittings are a cost-effective alternative to the 316 grade. These fittings are prone to pitting in stress-induced conditions. Stainless Steel Buttweld Fittings are high-strength fittings that are common in the industry. These fittings are quality-assured and available at reasonable prices. We are the Stainless Steel Pipe Fittings manufacturer in India who make use of the best raw materials and latest technology to produce quality-assured products in the industry.
The Stainless Steel Elbow is a device that is employed to change the direction of the flow in the system. These elbows are generally available in 45 and 90-degree turns but can be customized on request. A Stainless Steel Tee is designed in the shape of a T and has three outlets. The tees can either have equal or possess unequal openings. The Stainless Steel Reducer is used in connecting piping fixtures of dissimilar sizes and shapes efficiently in the system. The versatile Stainless Steel End Cap is used to seal and close the ends of piping components. The cap protects it from damage and corrosion during storage and movement. Stainless Steel Stub Ends are short lengths of pipes that have a flared end with a square-cut end on the other which is welded on the fixture. A Stainless Steel Pipe Bend has a larger radius compared to elbows. These bends have a radius of curvature which is twice their diameter. Our company is a Stainless Steel Fittings Manufacturers In India who can supply products of different sizes and shapes as per customer requirements.
1/2" TO 24" Stainless Steel Elbow, ASTM A403 WP 316 Long and Short Radius Elbow manufacturer in Mumbai, view 45/ 90 deg SS Elbow price list & dimensions
Table of Content
Stainless Steel Pipe Fittings Specification
Size: | Seamless DN15 (1/2") - DN600 (24") Welded DN15(1/2") - DN1200 (48") |
Type: | Elbow, Tee, Reducer, Cap, Stud-Ends, Cross |
Forming: | Mandrel Forming or Press Forming |
Surface finish: | Shot blasting, Sand blasting or Pickling surface |
Standard: | ASME/ANSI B16.9, JIS B2311/2312/2313, DIN2605/2615/2616/2617, EN10253, MSS SP-43/75 |
Bending Radius | Radius=1 D, 2D, 3 D, 5D, 6D, 8 D, 10D |
---|---|
WT: | SCH5S - SCH160 |
Material: | 304, 304L, 304H, 316, 316L, 321, 321H, 317, 317L, 310, 310S, 310h, 904L, etc. |
Connection | Butt Weld End as per ASME B16.9 |
Application | For Water, Oil and Gas Industrial |
Stainless Steel Fittings Price List
Per Kg
1-1/4 NB SS304 SCH80 90 DEG SR ELBOW
Per Kg
SMS 90 DEG WELDED LONG ELBOW WITH - SIZE : 11/2
Per Piece
SS316L 3A 7W LONG EQUAL TEE, OD#180
Per Kg
200 NB SS StubEnd Sch40S Grade WP 316L
Per Kg
SS 316L 8 X 6 ECCENTRIC REDUCER,3A STANDARD
Per Kg
END CAP, SS316, SATIN FINISH, PIPA DIA: 50.8MM
Stainless Steel Fittings Pressure Rating Chart
Normal Size Of Pipe (inches) | Wall Thick. (inch) | Pipe Sch | OD (inch) | Temperature (oF) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||||
Allowable Stress (psi) | ||||||||||||
16700 | 16700 | 16700 | 15500 | 14400 | 13500 | 13200 | 12900 | 12600 | ||||
1" | 0.133 | 40 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 | 1783 | 1743 | 1703 | 1664 |
0.179 | 80 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | 2475 | 2420 | 2365 | 2310 | |
0.250 | 160 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | 3632 | 3552 | 3471 | 3390 | |
1 1/2" | 0.145 | 40 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 | 1317 | 1287 | 1258 | 1229 |
0.200 | 80 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | 1862 | 1821 | 1779 | 1738 | |
0.281 | 160 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | 2717 | 2657 | 2597 | 2536 | |
2" | 0.154 | 40 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 | 1108 | 1083 | 1059 | 1034 |
0.218 | 80 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | 1605 | 1569 | 1534 | 1498 | |
0.344 | 160 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | 2654 | 2595 | 2536 | 2477 | |
3" | 0.216 | 40 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 | 1052 | 1028 | 1005 | 982 |
0.300 | 80 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | 1491 | 1458 | 1425 | 1391 | |
0.438 | 160 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | 2253 | 2203 | 2153 | 2103 | |
4" | 0.237 | 40 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 | 891 | 871 | 851 | 831 |
0.337 | 80 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | 1291 | 1262 | 1233 | 1204 | |
0.531 | 160 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | 2111 | 2064 | 2017 | 1970 | |
5" | 0.258 | 40 | 5.563 | 965 | 965 | 965 | 896 | 832 | 780 | 763 | 746 | 728 |
0.375 | 80 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | 1154 | 1129 | 1103 | 1077 | |
0.625 | 160 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | 2000 | 1955 | 1911 | 1866 | |
6" | 0.280 | 40 | 6.625 | 877 | 877 | 877 | 814 | 756 | 709 | 693 | 677 | 661 |
0.432 | 80 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | 1115 | 1090 | 1065 | 1040 | |
0.719 | 160 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | 1925 | 1883 | 1840 | 1797 | |
8" | 0.322 | 40 | 8.625 | 771 | 771 | 771 | 716 | 665 | 623 | 610 | 596 | 582 |
0.500 | 80 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | 985 | 963 | 941 | 919 | |
0.906 | 160 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | 1858 | 1817 | 1775 | 1734 | |
10" | 0.365 | 40 | 10.750 | 699 | 699 | 699 | 649 | 603 | 565 | 553 | 540 | 528 |
0.594 | 80 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | 937 | 916 | 895 | 874 | |
1.125 | 160 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | 1850 | 1809 | 1768 | 1727 |
Standard For Stainless Steel Fittings
Manufacturer & Supplier of SS 304 Pipe Fittings & ASTM A403 WP304 Reducer, check SS Stub end sizes & Price in India
Various Types of Stainless Steel Pipe Fittings
Stainless Steel Buttweld Pipe Fittings
Stainless Steel Seamless Fittings
ASME B16 9 Stainless Steel Fittings
stainless steel pipe fittings
304 Stainless Steel Fittings
304l Stainless Steel Fittings

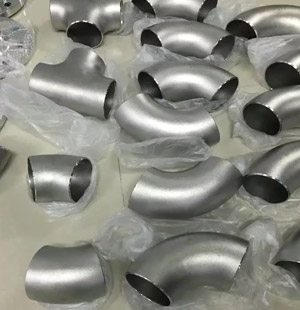

Sch 80 Stainless Steel Pipe Fittings
304 Stainless Steel Pipe Fittings
304 Stainless Steel Weld Fittings
316l Stainless Steel Fittings
317 Stainless Steel Fittings
316 Stainless Steel Fittings
316 Stainless Steel Pipe Fittings
Stainless Steel 304 Buttweld Fittings
Stainless Steel 317l Pipe Fittings
321 Stainless Steel Pipe Fittings
Stainless Steel 310s Pipe Fittings
310 Stainless Steel Pipe Fittings
310 Stainless Steel Fittings
904l Stainless Steel Fittings
310 SS Pipe Fittings
Stainless Steel Buttweld Fittings Chemical Composition
Grade | Carbon | Chromium | Silicone | Phosphorus | Manganese | Nitrogen | Molybdenum | Nickel | Titanium | Sulfur | Iron | |
304 | min. | 18.0 | 8.0 | |||||||||
max. | 0.08 | 20.0 | 0.75 | 0.045 | 2.0 | 0.10 | 10.5 | 0.030 | ||||
304L | min. | 18.0 | 8.0 | |||||||||
max. | 0.030 | 20.0 | 0.75 | 0.045 | 2.0 | 0.10 | 12.0 | 0.030 | ||||
304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
max. | 0.010 | 20.0 | 0.75 | 0.045 | 2.0 | 10.5 | 0.030 | |||||
316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
max. | 0.035 | 18.0 | 0.75 | 0.045 | 2.0 | 14.0 | 0.030 | |||||
316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
max. | 0.035 | 18.0 | 0.75 | 0.045 | 2.0 | 14.0 | 0.030 | |||||
316TI | 0.08 max | 16.00 18.00 | 2.0 max | 0.045 max | 10.00 14.00 | 0.75 max | 2.00 3.00 | 0.030 max | ||||
317 | 0.08 max | 18.00 20.00 | 1 max | 0.045 max | 2 max | 3.00 4.00 | 0.030 max | 57.845 min | ||||
SS 317L | 0.035 max | 18.00 20.00 | 1.0 max | 0.045 max | 2.0 max | 3.00 4.00 | 11.00 15.00 | 0.030 max | 57.89 min | |||
SS 321 | 0.08 max | 17.00 19.00 | 1.0 max | 0.045 max | 2.0 max | 0.10 max | 9.00 12.00 | 5(C+N) 0.70 max | 0.030 max | |||
SS 321H | 0.04 0.10 | 17.00 19.00 | 1.0 max | 0.045 max | 2.0 max | 0.10 max | 9.00 12.00 | 4(C+N) 0.70 max | 0.030 max | |||
347/ 347H | 0.08 max | 17.00 20.00 | 1.0 max | 0.045 max | 2.0 max | 9.0013.00 | 0.030 max | |||||
410 | min. | 11.5 | ||||||||||
max. | 0.15 | 13.5 | 1.00 | 0.040 | 1.0 | 0.75 | 0.030 | |||||
446 | min. | 23.0 | 0.10 | |||||||||
max. | 0.2 | 30.0 | 0.75 | 0.040 | 1.5 | 0.25 | 0.50 | 0.030 | ||||
904L | min. | 19.0 | 0.10 | 4.00 | 23.00 | |||||||
max. | 0.20 | 23.0 | 1.00 | 0.045 | 2.00 | 0.25 | 5.00 | 28.00 | 0.035 |
SS Pipe Fittings Mechanical Properties
Grade | Elongation | Melting Point | Density | Yield Strength (0.2%Offset) | Tensile Strength |
304/ 304L | 35 % | 1400 °C (2550 °F) | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 |
304H | 40 % | 1400 °C (2550 °F) | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 |
310 / 310S / 310H | 40 % | 1402 °C (2555 °F) | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 |
306/ 316H | 35 % | 1400 °C (2550 °F) | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 |
316L | 35 % | 1399 °C (2550 °F) | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 |
317 | 35 % | 1400 °C (2550 °F) | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 |
321 | 35 % | 1457 °C (2650 °F) | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 |
347 | 35 % | 1454 °C (2650 °F) | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 |
904L | 35 % | 1350 °C (2460 °F) | 7.95 g/cm3 | Psi 32000 , MPa 220 | Psi 71000 , MPa 490 |
ASTM A403 WP 316L Straight/ Reducing tee & SS 316 Pipe Fittings manufacturer in Mumbai, view our online Stainless Steel Fittings price list
SS ASTM A403 Fittings Equivalent
STANDARD | UNS | WERKSTOFF NR. | JIS | AFNOR | BS | EN | GOST |
304 | S30400 | 1.4301 | SUS 304 | Z7CN18‐09 | 304S31 | X5CrNi18-10 | 08Х18Н10 |
304L | S30403 | 1.4306 / 1.4307 | SUS 304L | Z3CN18‐10 | 3304S11 | X2CrNi18-9 / X2CrNi19-11 | 03Х18Н11 |
304H | S30409 | 1.4301 | - | - | - | - | - |
310 | S31000 | 1.4841 | SUS 310 | - | 310S24 | X15CrNi25-20 | 20Ch25N20S2 |
310S | S31008 | 1.4845 | SUS 310S | - | 310S16 | X8CrNi25-21 | 20Ch23N18 |
310H | S31009 | - | - | - | - | - | - |
316 | S31600 | 1.4401 / 1.4436 | SUS 316 | Z7CND17‐11‐02 | 316S31 / 316S33 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | - |
316L | S31603 | 1.4404 / 1.4435 | SUS 316L | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 316S11 / 316S13 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | 03Ch17N14M3 / 03Ch17N14M2 |
316H | S31609 | 1.4401 | - | - | - | - | - |
316Ti | S31635 | 1.4571 | SUS 316Ti | Z6CNDT17‐123 | 320S31 | X6CrNiMoTi17-12-2 | 08Ch17N13M2T |
317 | S31700 | 1.4449 | SUS 317 | - | - | - | - |
317L | S31703 | 1.4438 | SUS 317L | - | - | X2CrNiMo18-15-4 | - |
321 | S32100 | 1.4541 | SUS 321 | - | - | X6CrNiTi18-10 | - |
321H | S32109 | 1.4878 | SUS 321H | - | - | X12CrNiTi18-9 | - |
347 | S34700 | 1.4550 | SUS 347 | - | - | X6CrNiNb18-10 | 08Ch18N12B |
347H | S34709 | 1.4961 | SUS 347H | - | - | X6CrNiNb18-12 | - |
904L | N08904 | 1.4539 | SUS 904L | Z2 NCDU 25-20 | 904S13 | X1NiCrMoCu25-20-5 | STS 317J5L |
Stainless Steel Elbow Type
304 Ss Elbow
304 SS 1.5 d elbow
316 Ss Elbows
Stainless Steel 90 Degree Elbow
Stainless Steel 45 Degree Elbow
316 Stainless Steel 3d elbow
Stainless Steel 317 2d elbow
Stainless Steel Short Radius Elbow
Stainless Steel Reducing Elbow
Stainless Steel Long Radius Elbow
180 Degree Stainless Steel Pipe Elbow
Mandrel Stainless Steel Bends
304 Stainless Steel Bends
316 Stainless Steel Bends
321 Stainless Steel Bends

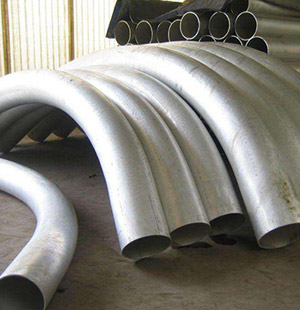

Stainless Steel Long Radius Bends
Stainless Steel Elbow, SS904L, 56 Inch
Seamless 5D Bend, ASTM A403 WP304H, DN400
Stainless Steel U Bend Pipe
ASTM A403 GR WP304L Elbows, 4IN, WT 3.05mm, Butt Weld
ASME B16.9 Seamless Elbow, ASTM A403 WP316L, DN80, SCH 10S
Stainless Steel Weld Elbow Dimensions
NPS | O.D. D | 90° LR A | 90° 3D A | 45° LR B | 45° 3D B |
1/2 | 21.3 | 38 | 16 | ||
3/4 | 26.7 | 38 | 57 | 19 | 24 |
1 | 33.4 | 38 | 76 | 22 | 31 |
1.1/4 | 42.2 | 48 | 95 | 25 | 39 |
1.1/2 | 48.3 | 57 | 114 | 29 | 47 |
2 | 60.3 | 76 | 152 | 35 | 63 |
2.1/2 | 73 | 95 | 190 | 44 | 79 |
3 | 88.9 | 114 | 229 | 51 | 95 |
3.1/2 | 101.6 | 133 | 267 | 57 | 111 |
4 | 114.3 | 152 | 305 | 64 | 127 |
5 | 141.3 | 190 | 381 | 79 | 157 |
6 | 168.3 | 229 | 457 | 95 | 189 |
8 | 219.1 | 305 | 610 | 127 | 252 |
10 | 273 | 381 | 762 | 159 | 316 |
12 | 323.8 | 457 | 914 | 190 | 378 |
14 | 355.6 | 533 | 1067 | 222 | 441 |
16 | 406.4 | 610 | 1219 | 254 | 505 |
18 | 457 | 686 | 1372 | 286 | 568 |
20 | 508 | 762 | 1524 | 318 | 632 |
22 | 559 | 838 | 1676 | 343 | 694 |
24 | 610 | 914 | 1829 | 381 | 757 |
26 | 660 | 991 | 1981 | 406 | 821 |
28 | 711 | 1067 | 2134 | 438 | 883 |
30 | 762 | 1143 | 2286 | 470 | 946 |
32 | 813 | 1219 | 2438 | 502 | 1010 |
34 | 864 | 1295 | 2591 | 533 | 1073 |
36 | 914 | 1372 | 2743 | 565 | 1135 |
38 | 965 | 1448 | 2896 | 600 | 1200 |
40 | 1016 | 1524 | 3048 | 632 | 1264 |
42 | 1067 | 1600 | 3200 | 660 | 1326 |
44 | 1118 | 1676 | 3353 | 695 | 1389 |
46 | 1168 | 1753 | 3505 | 727 | 1453 |
48 | 1219 | 1829 | 3658 | 759 | 1516 |
Stainless Steel Short Radius Elbow Dimensions
Nominal Pipe Size | Outside Diameter | Pipe Schedule | Wall Thickness | Inside Diameter | Center To End | Weight Pounds |
1 | 1.32 | 40 | 0.133 | 1.05 | 1 | 0.25 |
1 1/4 | 1.66 | 40 | 0.14 | 1.38 | 1.25 | 0.39 |
1 1/2 | 1.9 | 40 | 0.145 | 1.61 | 1.5 | 0.53 |
2 | 2.38 | 40 | 0.154 | 2.07 | 2 | 0.97 |
2 1/2 | 2.88 | 40 | 0.203 | 2.47 | 2.5 | 2 |
3 | 3.5 | 40 | 0.216 | 3.07 | 3 | 3 |
3 1/2 | 4 | 40 | 0.226 | 3.55 | 3.5 | 4.3 |
4 | 4.5 | 40 | 0.237 | 4.03 | 4 | 6.1 |
5 | 5.56 | 40 | 0.258 | 5.05 | 5 | 9.7 |
6 | 6.63 | 40 | 0.28 | 6.07 | 6 | 16.7 |
8 | 8.63 | 40 | 0.322 | 7.98 | 8 | 32.4 |
10 | 10.75 | 40 | 0.365 | 10.02 | 10 | 56.3 |
12 | 12.75 | * | 0.375 | 12 | 12 | 79.4 |
14 | 14 | 30 | 0.375 | 13.25 | 14 | 104 |
16 | 16 | 30 | 0.375 | 15.25 | 16 | 129 |
18 | 18 | * | 0.375 | 17.25 | 18 | 163 |
20 | 20 | 20 | 0.375 | 19.25 | 20 | 210 |
24 | 24 | 20 | 0.375 | 23.25 | 24 | 297 |
30 | 30 | * | 0.375 | 29.25 | 30 | 480 |
36 | 36 | * | 0.375 | 35.25 | 36 | 692 |
42 | 42 | * | 0.375 | 41.25 | 42 | 967 |
48 | 48 | * | 0.375 | 47.25 | 48 | 1,340 |
Stainless Steel Long Radius Elbow Dimensions
Nominal Pipe Size | Inside Diameter | Outside Diameter | Center To End | Wall Thickness | Pipe Schedule | Weight Pounds |
1/2 | 0.622 | 0.84 | 1.5 | 0.109 | 40 | 0.16 |
3/4 | 0.824 | 1.05 | 1.5 | 0.113 | 40 | 0.17 |
1 | 1.049 | 1.32 | 1.5 | 0.133 | 40 | 0.4 |
1 1/4 | 1.38 | 1.66 | 1.88 | 0.14 | 40 | 0.55 |
1 1/2 | 1.61 | 1.9 | 2.25 | 0.145 | 40 | 0.8 |
2 | 2.07 | 2.38 | 3 | 0.154 | 40 | 1.6 |
2 1/2 | 2.47 | 2.88 | 3.75 | 0.203 | 40 | 3.2 |
3 | 3.07 | 3.5 | 4.5 | 0.216 | 40 | 4.8 |
3 1/2 | 3.55 | 4 | 5.25 | 0.226 | 40 | 6.6 |
4 | 4.03 | 4.5 | 6 | 0.237 | 40 | 8.9 |
5 | 5.05 | 5.56 | 7.5 | 0.258 | 40 | 15.1 |
6 | 6.07 | 6.62 | 9 | 0.28 | 40 | 24 |
8 | 7.98 | 8.62 | 12 | 0.322 | 40 | 47.8 |
10 | 10.02 | 10.75 | 15 | 0.365 | 40 | 83.4 |
12 | 12 | 12.75 | 18 | 0.375 | * | 123 |
14 | 13.25 | 14 | 21 | 0.375 | 30 | 155 |
16 | 15.25 | 16 | 24 | 0.375 | 30 | 206 |
18 | 17.25 | 18 | 27 | 0.375 | * | 262 |
20 | 19.25 | 20 | 30 | 0.375 | 20 | 324 |
24 | 23.25 | 24 | 36 | 0.375 | 20 | 466 |
30 | 29.25 | 30 | 45 | 0.375 | * | 720 |
36 | 35.25 | 36 | 54 | 0.375 | * | 1,039 |
42 | 41.25 | 42 | 63 | 0.375 | * | 1,420 |
48 | 47.25 | 48 | 72 | 0.375 | * | 2,000 |
SS 304 Elbow Weight Chart
Long Radius Elbow
NPS | LBS | KG |
1/2 | 0.18 | 0.08 |
3/4 | 0.19 | 0.09 |
1 | 0.4 | 0.18 |
1.1/4 | 0.6 | 0.27 |
1.1/2 | 0.9 | 0.41 |
2 | 1.6 | 0.73 |
2.1/2 | 3.25 | 1.47 |
3 | 5 | 2.27 |
3.1/2 | 6.75 | 3.06 |
4 | 9 | 4.08 |
5 | 15 | 6.8 |
6 | 24.5 | 11.11 |
8 | 50 | 22.68 |
10 | 88 | 39.92 |
12 | 125 | 56.7 |
14 | 160 | 72.57 |
16 | 206 | 93.44 |
18 | 260 | 117.93 |
20 | 320 | 145.15 |
22 | 394 | 178.72 |
24 | 460 | 208.65 |
26 | 550 | 249.48 |
30 | 734 | 332.94 |
36 | 1062 | 481.72 |
Short Radius Elbow
NPS | LBS | KG |
1 | 0.25 | 0.11 |
1.1/4 | 0.4 | 0.18 |
1.1/2 | 0.56 | 0.25 |
2 | 1 | 0.45 |
2.1/2 | 2.13 | 0.97 |
3 | 3 | 1.36 |
3.1/2 | 4.5 | 2.04 |
4 | 6.25 | 2.83 |
5 | 9.6 | 4.35 |
6 | 18 | 8.16 |
8 | 34 | 15.42 |
10 | 58 | 26.31 |
12 | 80 | 36.29 |
14 | 105 | 47.63 |
16 | 132 | 59.87 |
18 | 167 | 75.75 |
20 | 210 | 95.25 |
22 | - | - |
24 | 298 | 135.17 |
Dimensional Tolerance of SS Pipe Elbows
For all fittings | Elbows 90/45 deg | 180° Returns | |||||
Nominal Pipe Size (NPS) | Outside Ø at Bevel | Inside Ø at End | Wall Thickness t / t1 | Center to End Dim. A-B-C-M | Center to Center Dim. O | Back to Face Dim. K | Align- ment of Ends U |
1/2 a 2 1/2 | 1 | 0,8 | Not | 2 | 7 | 7 | 1 |
4 | +2 -1 | 1,6 | than | 2 | 7 | 7 | 1 |
5 a 6 | +3 -1 | 1,6 | 87,50% | 2 | 7 | 7 | 1 |
32 a 48 | +7 -5 | 4,8 | 5 | ||||
3 a 3 1/2 | 1 | 1,6 | less | 2 | 7 | 7 | 1 |
8 | 2 | 1,6 | of nominal | 2 | 7 | 7 | 1 |
10 | +4 -3 | 3,2 | tickness | 2 | 7 | 7 | 2 |
20 a 24 | +6 -5 | 4,8 | 3 | 10 | 7 | 2 | |
12 a 18 | +4 -3 | 3,2 | 3 | 10 | 7 | 2 | |
26 a 30 | +7 -5 | 4,8 | 3 |
Manufacturer of Stainless Steel Reducer & ASTM A403 WP304L Buttweld Fittings in India as per ASME B16.9 specification
Types of Stainless Steel Tee
Stainless Steel Equal Tee
Stainless Steel Unequal Tee
Stainless Steel Tee
Stainless Steel Reducing Tee
A403 WP316 Stainless Steel Equal Tee, ANSI B16.9, DN100, SCH 10S
Reducing Tee, ASTM A403 WP316L, SCH 80
ASME B16.9 Seamless Straight Tee, A-403 WP316L DN80, SCH 10S
ASME B16.9 Stainless Steel Equal Tee, A403 WP316L, DN200
ASTM A403, ANSI B16.9, Reducing Tee, 1-1/2 × 3/4 Inch
Stainless Steel Equal Tee Dimensions
NOMINAL PIPE SIZE | CENTER TO END | OUTSIDE DIAMETER | LENGTH |
---|---|---|---|
Inch. | C | OD | M |
1/2 | 25 | 21.3 | 25 |
3/4 | 29 | 26.7 | 29 |
1 | 38 | 33.4 | 38 |
1 1/4 | 48 | 42.2 | 48 |
1 1/2 | 57 | 48.3 | 57 |
2 | 64 | 60.3 | 64 |
2 1/2 | 76 | 73 | 76 |
3 | 86 | 88.9 | 86 |
3 1/2 | 95 | 101.6 | 95 |
4 | 105 | 114.3 | 105 |
5 | 124 | 141.3 | 124 |
6 | 143 | 168.3 | 143 |
8 | 178 | 219.1 | 178 |
10 | 216 | 273.1 | 216 |
12 | 254 | 323.9 | 254 |
14 | 279 | 355.6 | 279 |
16 | 305 | 406.4 | 305 |
18 | 343 | 457.2 | 343 |
20 | 381 | 508 | 381 |
22 | 419 | 559 | 419 |
24 | 432 | 610 | 432 |
26 | 495 | 660 | 495 |
28 | 521 | 711 | 521 |
30 | 559 | 762 | 559 |
32 | 597 | 813 | 597 |
34 | 635 | 864 | 635 |
36 | 673 | 914 | 673 |
38 | 711 | 965 | 711 |
40 | 749 | 1016 | 749 |
42 | 762 | 1067 | 711 |
44 | 813 | 1118 | 762 |
46 | 851 | 1168 | 800 |
48 | 889 | 1219 | 838 |
321 Stainless Steel Reducing Tee Dimensions
NPS | Center to End C | O.D. D1 | O.D. D | Center to End M |
3/4 - 1/2 | 29 | 21.3 | 26.7 | 29 |
1 - 1/2 | 38 | 21.3 | 33.4 | 38 |
1 - 3/4 | 38 | 26.7 | 33.4 | 38 |
1.1/4 - 1/2 | 48 | 21.3 | 42.2 | 48 |
1.1/4 - 3/4 | 48 | 26.7 | 42.2 | 48 |
1.1/4 - 1 | 48 | 33.4 | 42.2 | 48 |
1.1/2 - 1/2 | 57 | 21.3 | 48.3 | 57 |
1.1/2 - 3/4 | 57 | 26.7 | 48.3 | 57 |
1.1/2 - 1 | 57 | 33.4 | 48.3 | 57 |
1.1/2 - 1.1/4 | 57 | 42.2 | 48.3 | 57 |
2 - 3/4 | 64 | 26.7 | 60.3 | 44 |
2 - 1 | 64 | 33.4 | 60.3 | 51 |
2 - 1.1/4 | 64 | 42.2 | 60.3 | 57 |
2 - 1.1/2 | 64 | 48.3 | 60.3 | 60 |
2.1/2 - 1 | 76 | 33.4 | 73 | 57 |
2.1/2 - 1.1/4 | 76 | 42.2 | 73 | 64 |
2.1/2 - 1.1/2 | 76 | 48.3 | 73 | 67 |
2.1/2 - 2 | 76 | 60.3 | 73 | 70 |
3 - 1.1/4 | 86 | 42.2 | 88.9 | 70 |
3 - 1.1/2 | 86 | 48.3 | 88.9 | 73 |
3 - 2 | 86 | 60.3 | 88.9 | 76 |
3 - 2.1/2 | 86 | 73 | 88.9 | 83 |
3.1/2 - 1.1/2 | 95 | 48.3 | 101.6 | 79 |
3.1/2 - 2 | 95 | 60.3 | 101.6 | 83 |
3.1/2 - 2.1/2 | 95 | 73 | 101.6 | 89 |
3.1/2 - 3 | 95 | 88.9 | 101.6 | 92 |
4 - 1.1/2 | 105 | 48.3 | 114.3 | 86 |
4 - 2 | 105 | 60.3 | 114.3 | 89 |
4 - 2.1/2 | 105 | 73 | 114.3 | 95 |
4 - 3 | 105 | 88.9 | 114.3 | 98 |
4 - 3.1/2 | 105 | 101.6 | 114.3 | 102 |
316 SS Reducing Tee Weight Chart
NPS | KG | LBS |
1/2-3/8 | 0.11 | 0.25 |
1/2-1/4 | 0.11 | 0.25 |
3/4-1/2 | 0.23 | 0.5 |
3/4-3/8 | 0.23 | 0.5 |
1-3/4 | 0.42 | 0.93 |
1-1/2 | 0.4 | 0.88 |
1.1/4-1 | 0.68 | 1.5 |
1.1/4-3/4 | 0.68 | 1.5 |
1.1/4-1/2 | 0.68 | 1.5 |
1.1/2-1.1/4 | 1.02 | 2.25 |
1.1/2-1 | 0.99 | 2.18 |
1.1/2-3/4 | 0.97 | 2.13 |
1.1/2-1/2 | 0.91 | 2 |
2-1.1/2 | 1.7 | 3.75 |
2-1.1/4 | 1.63 | 3.6 |
2-1 | 1.59 | 3.5 |
2-3/4 | 1.47 | 3.25 |
2.1/2-2 | 2.72 | 6 |
2.1/2-1.1/2 | 2.49 | 5.5 |
2.1/2-1.1/4 | 2.38 | 5.25 |
2.1/2-1 | 2.27 | 5 |
3-2.1/2 | 3.06 | 6.75 |
3-2 | 2.95 | 6.5 |
3-1.1/2 | 2.83 | 6.25 |
3-1.1/4 | 2.79 | 6.15 |
3.1/2-3 | 3.99 | 8.8 |
3.1/2-2.1/2 | 3.86 | 8.5 |
3.1/2-2 | 3.76 | 8.3 |
3.1/2-1.1/2 | 3.63 | 8 |
3.1/2-1.1/4 | - | - |
4-3.1/2 | 5.35 | 11.8 |
4-3 | 5.26 | 11.6 |
4-2.1/2 | 5.13 | 11.3 |
4-2 | 5.06 | 11.15 |
4-1.1/2 | 5.1 | 11.25 |
5-4 | 9.53 | 21 |
5-3.1/2 | 9.3 | 20.5 |
5-3 | 9.07 | 20 |
5-2.1/2 | 8.85 | 19.5 |
5-2 | 8.62 | 19 |
6-5 | 15.65 | 34.5 |
6-4 | 15.2 | 33.5 |
6-3.1/2 | 14.97 | 33 |
6-3 | 14.74 | 32.5 |
6-2.1/2 | 14.51 | 32 |
8-6 | 24.49 | 54 |
8-5 | 24.04 | 53 |
8-4 | 23.45 | 51.7 |
8-3.1/2 | 23 | 50.7 |
10-8 | 38.33 | 84.5 |
10-6 | 37.65 | 83 |
10-5 | 36.74 | 81 |
10-4 | 36.29 | 80 |
12-10 | 53.98 | 119 |
12-8 | 53.07 | 117 |
12-6 | 51.71 | 114 |
12-5 | 49.9 | 110 |
14-12 | 72.57 | 160 |
14-10 | 71.67 | 158 |
14-8 | 70.31 | 155 |
14-6 | 52.16 | 115 |
16-14 | 88 | 194 |
16-12 | 86.64 | 191 |
16-10 | 84.37 | 186 |
16-8 | 81.65 | 180 |
16-6 | 78.47 | 173 |
18-16 | 109.32 | 241 |
18-14 | 107.05 | 236 |
18-12 | 104.33 | 230 |
18-10 | 100.7 | 222 |
18-8 | 95.71 | 211 |
20-18 | 154.22 | 340 |
20-16 | 153.31 | 338 |
20-14 | 152.41 | 336 |
20-12 | 151.5 | 334 |
20-10 | 150.59 | 332 |
20-8 | 149.69 | 330 |
22-20 | 186.88 | 412 |
22-18 | 185.97 | 410 |
22-16 | 185.07 | 408 |
22-14 | 184.16 | 406 |
22-12 | 183.25 | 404 |
22-10 | 182.34 | 402 |
24-22 | 238.14 | 525 |
24-20 | 236.78 | 522 |
24-18 | 235.41 | 519 |
24-16 | 234.05 | 516 |
24-14 | 232.69 | 513 |
24-12 | 231.33 | 510 |
24-10 | 229.97 | 507 |
26-24 | 344.73 | 760 |
26-22 | 342.46 | 755 |
26-20 | 340.19 | 750 |
26-18 | 337.93 | 745 |
26-16 | 335.66 | 740 |
26-14 | 333.39 | 735 |
26-12 | 331.12 | 730 |
28-26 | - | - |
28-24 | - | - |
28-22 | - | - |
28-20 | - | - |
30-28 | - | - |
30-26 | 474 | 1045 |
30-24 | 469.47 | 1035 |
30-22 | 464.93 | 1025 |
30-20 | 460.4 | 1015 |
30-18 | 455.86 | 1005 |
30-16 | 451.32 | 995 |
Diffrent Types of Stainless Steel Reducer
SS 316 Concentric Reducer
316 Stainless Steel Reducer

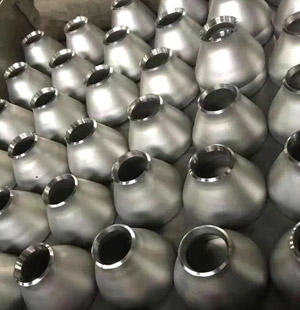

Stainless Steel Reducer
Stainless Steel Eccentric Reducer
Stainless Steel Concentric Reducer
304 Stainless Steel Reducer
SS A403 WP304 Eccentric Reducer, 8×4 Inch, SCH 40, BW
Stainless Steel Reducer, SS304, MSS SP-43, ASME B16.9
ASME B16.9 Concentric Reducer, A403 WP304L, DN100 X DN50, SCH 80S
904L SS Concentric Reducer Dimensions
RCD Reiso Code | BIG Ø | SMALL Ø | Hight (H) MM | Theoretical Weight In KG (Kilogram) | ||||
---|---|---|---|---|---|---|---|---|
(DN) | (D) MM | Thickness Of (S) In MM. | (DN) | (D) MM | Thickness Of (S) MM | |||
27 21 | 3/4 | 26.9 | 2.3 | 1/2 | 21.3 | 2.0 | 38 | 0.08 |
33 21 | 1 | 33.7 | 2.6 | 1/2 | 21.3 | 2.0 | 50 | 0.09 |
33 27 | 3/4 | 26.9 | 2.3 | 0.09 | ||||
42 21 | 1"1/4 | 42.4 | 2.6 | 1/2 | 21.3 | 2.0 | 50 | 0.12 |
42 27 | 3/4 | 26.9 | 2.3 | 0.13 | ||||
42 33 | 1 | 33.7 | 2.6 | 0.14 | ||||
*48 21 | 1"1/2 | 48.3 | 2.6 | 1/2 | 21.3 | 2.0 | 64 | 0.18 |
48 27 | 3/4 | 26.9 | 2.3 | 0.19 | ||||
48 33 | 1 | 33.7 | 2.6 | 0.20 | ||||
48 42 | 1"1/4 | 42.4 | 2.6 | 0.20 | ||||
60 27 | 2 | 60.3 | 2.9 | 3/4 | 26.9 | 2.3 | 76 | 0.30 |
60 33 | 1 | 33.7 | 2.6 | 0.31 | ||||
60 42 | 1"1/4 | 42.4 | 2.6 | 0.32 | ||||
60 48 | 1"1/2 | 48.3 | 2.6 | 0.33 | ||||
76 33 | 2"1/2 | 76.1 | 2.9 | 1 | 33.7 | 2.6 | 90 | 0.40 |
76 42 | 1"1/4 | 42.4 | 2.6 | 0.47 | ||||
76 48 | 1"1/2 | 48.3 | 2.6 | 0.48 | ||||
76 60 | 2 | 60.3 | 2.6 | 0.49 | ||||
89 42 | 3 | 88.9 | 3.2 | 1"1/4 | 42.4 | 2.6 | 90 | 0.55 |
89 48 | 1"1/2 | 48.3 | 2.6 | 0.61 | ||||
89 60 | 2 | 60.3 | 2.9 | 0.62 | ||||
89 76 | 2"1/2 | 76.1 | 2.9 | 0.63 | ||||
114 48 | 4 | 114.3 | 3.6 | 1"1/2 | 48.3 | 2.6 | 100 | 0.85 |
114 60 | 2 | 60.3 | 2.9 | 0.98 | ||||
114 76 | 2"1/2 | 76.1 | 2.9 | 1.00 | ||||
114 89 | 3 | 88.9 | 3.2 | 1.02 | ||||
139 60 | 5 | 139.7 | 4.0 | 2 | 60.3 | 2.9 | 127 | 1.60 |
139 76 | 2"1/2 | 76.1 | 2.9 | 1.70 | ||||
139 89 | 3 | 88.9 | 3.2 | 1.74 | ||||
139 114 | 4 | 114.3 | 3.6 | 1.76 | ||||
*168 76 | 6 | 168.3 | 4.5 | 2"1/2 | 76.1 | 2.9 | 140 | 2.60 |
168 89 | 3 | 88.9 | 3.2 | 2.70 | ||||
168 114 | 4 | 114.3 | 3.6 | 2.82 | ||||
168 139 | 5 | 139.7 | 4.0 | 2.94 | ||||
219 114 | 8 | 219.1 | 6.3 | 4 | 114.3 | 3.6 | 152 | 5.03 |
219 139 | 5 | 139.7 | 4.0 | 5.12 | ||||
219 168 | 6 | 168.3 | 4.5 | 5.18 | ||||
*273 114 | 10 | 273.0 | 6.3 | 4 | 114.3 | 3.6 | 178 | 7.00 |
*273 139 | 5 | 139.7 | 4.0 | 7.20 | ||||
273 168 | 6 | 168.3 | 4.5 | 7.40 | ||||
273 219 | 8 | 219.1 | 6.3 | 7.55 | ||||
323 168 | 12 | 323.9 | 7.1 | 6 | 168.3 | 4.5 | 203 | 11.00 |
323 219 | 8 | 219.1 | 6.3 | 11.10 | ||||
323 273 | 10 | 273 | 6.3 | 11.20 |
SS Eccentric Reducer Dimensions
NPS | O.D. | Length | O.D. |
3/4 - 1/2 | 21.3 | 38 | 26.7 |
1 - 1/2 | 21.3 | 51 | 33.4 |
1 - 3/4 | 26.7 | 51 | 33.4 |
1.1/4 - 1/2 | 21.3 | 51 | 42.2 |
1.1/4 - 3/4 | 26.7 | 51 | 42.2 |
1.1/4 - 1 | 33.4 | 51 | 42.2 |
1.1/2 - 1/2 | 21.3 | 64 | 48.3 |
1.1/2 - 3/4 | 26.7 | 64 | 48.3 |
1.1/2 - 1 | 33.4 | 64 | 48.3 |
1.1/2 - 1.1/4 | 42.2 | 64 | 48.3 |
2 - 3/4 | 26.7 | 76 | 60.3 |
2 - 1 | 33.4 | 76 | 60.3 |
2 - 1.1/4 | 42.2 | 76 | 60.3 |
2 - 1.1/2 | 48.3 | 76 | 60.3 |
2.1/2 - 1 | 33.4 | 89 | 73 |
2.1/2 - 1.1/4 | 42.2 | 89 | 73 |
2.1/2 - 1.1/2 | 48.3 | 89 | 73 |
2.1/2 - 2 | 60.3 | 89 | 73 |
3 - 1.1/4 | 42.2 | 89 | 88.9 |
3 - 1.1/2 | 48.3 | 89 | 88.9 |
3 - 2 | 60.3 | 89 | 88.9 |
3 - 2.1/2 | 73 | 89 | 88.9 |
3.1/2 - 1.1/4 | 42.2 | 102 | 101.6 |
3.1/2 - 1.1/2 | 48.3 | 102 | 101.6 |
3.1/2 - 2 | 60.3 | 102 | 101.6 |
3.1/2 - 2.1/2 | 73 | 102 | 101.6 |
3.1/2 - 3 | 88.9 | 102 | 101.6 |
4 - 1.1/2 | 48.3 | 102 | 114.3 |
4 - 2 | 60.3 | 102 | 114.3 |
4 - 2.1/2 | 73 | 102 | 114.3 |
4 - 3 | 88.9 | 102 | 114.3 |
4 - 3.1/2 | 101.6 | 102 | 114.3 |
5 - 2 | 60.3 | 127 | 141.3 |
5 - 2.1/2 | 73 | 127 | 141.3 |
5 - 3 | 88.9 | 127 | 141.3 |
5 - 3.1/2 | 101.6 | 127 | 141.3 |
5 - 4 | 114.3 | 127 | 141.3 |
6 - 2.1/2 | 73 | 140 | 168.3 |
6 - 3 | 88.9 | 140 | 168.3 |
6 - 3.1/2 | 101.6 | 140 | 168.3 |
6 - 4 | 114.3 | 140 | 168.3 |
6 - 5 | 141.3 | 140 | 168.3 |
8 - 3.1/2 | 101.6 | 152 | 219.1 |
8 - 4 | 114.3 | 152 | 219.1 |
8 - 5 | 141.3 | 152 | 219.1 |
8 - 6 | 168.3 | 152 | 219.1 |
10 - 4 | 114.3 | 178 | 273 |
10 - 5 | 141.3 | 178 | 273 |
10 - 6 | 168.3 | 178 | 273 |
10 - 8 | 219.1 | 178 | 273 |
12 - 5 | 141.3 | 203 | 323.9 |
12 - 6 | 168.3 | 203 | 323.9 |
12 - 8 | 219.1 | 203 | 323.9 |
12 - 10 | 273 | 203 | 323.9 |
14 - 6 | 168.3 | 330 | 355.6 |
14 - 8 | 219.1 | 330 | 355.6 |
14 - 10 | 273 | 330 | 355.6 |
14 - 12 | 323.9 | 330 | 355.6 |
16 - 8 | 219 | 356 | 406.4 |
16 - 10 | 273 | 356 | 406.4 |
16 - 12 | 323.9 | 356 | 406.4 |
16 - 14 | 355.6 | 356 | 406.4 |
18 - 10 | 273 | 381 | 457 |
18 - 12 | 323.9 | 381 | 457 |
18 - 14 | 355.6 | 381 | 457 |
18 - 16 | 406.4 | 381 | 457 |
20 - 12 | 323.9 | 508 | 508 |
20 - 14 | 355.6 | 508 | 508 |
20 - 16 | 406.4 | 508 | 508 |
20 - 18 | 457 | 508 | 508 |
22 - 14 | 355.6 | 508 | 559 |
22 - 16 | 406.4 | 508 | 559 |
22 - 18 | 457 | 508 | 559 |
22 - 20 | 508 | 508 | 559 |
24 - 16 | 406.4 | 508 | 610 |
24 - 18 | 457 | 508 | 610 |
24 - 20 | 508 | 508 | 610 |
24 - 22 | 559 | 508 | 610 |
26 - 18 | 457 | 610 | 660 |
26 - 20 | 508 | 610 | 660 |
26 - 22 | 559 | 610 | 660 |
26 - 24 | 610 | 610 | 660 |
28 - 18 | 457 | 610 | 711 |
28 - 20 | 508 | 610 | 711 |
28 - 24 | 610 | 610 | 711 |
28 - 26 | 660 | 610 | 711 |
30 - 20 | 508 | 610 | 762 |
30 - 24 | 610 | 610 | 762 |
30 - 26 | 660 | 610 | 762 |
30 - 28 | 711 | 610 | 762 |
32 - 24 | 610 | 610 | 813 |
32 - 26 | 660 | 610 | 813 |
32 - 28 | 711 | 610 | 813 |
32 - 30 | 762 | 610 | 813 |
34 - 24 | 610 | 610 | 864 |
34 - 26 | 660 | 610 | 864 |
34 - 30 | 762 | 610 | 864 |
34 - 32 | 813 | 610 | 864 |
36 - 24 | 610 | 610 | 914 |
36 - 26 | 660 | 610 | 914 |
36 - 30 | 762 | 610 | 914 |
36 - 32 | 813 | 610 | 914 |
36 - 34 | 864 | 610 | 914 |
38 - 26 | 660 | 610 | 965 |
38 - 28 | 711 | 610 | 965 |
38 - 30 | 762 | 610 | 965 |
38 - 32 | 813 | 610 | 965 |
38 - 34 | 864 | 610 | 965 |
38 - 36 | 914 | 610 | 965 |
40 - 30 | 762 | 610 | 1016 |
40 - 32 | 813 | 610 | 1016 |
40 - 34 | 864 | 610 | 1016 |
40 - 36 | 914 | 610 | 1016 |
40 - 38 | 965 | 610 | 1016 |
316L Stainless Steel Pipe Reducer Sizes
Nominal Pipe Size | Outside Diameter | Reducers | ||
---|---|---|---|---|
Reduced from (inches) | (inches) | (mm) | Concentric & Eccentric Length (inches) | Reduced to (inches) |
1/2 | 0.840 | 21.3 | 1 1/2 | 1/4 |
1 1/2 | 3/8 | |||
3/4 | 1.050 | 26.7 | 2 | 3/8 |
2 | 1/2 | |||
1 | 1.315 | 33.4 | 2 | 3/8 |
2 | 1/2 | |||
2 | 3/4 | |||
1 1/4 | 1.660 | 42.2 | 2 | 1/2 |
2 | 3/4 | |||
2 | 1 | |||
1 1/2 | 1.900 | 48.3 | 2 1/2 | 1/2 |
2 1/2 | 3/4 | |||
2 1/2 | 1 | |||
2 1/2 | 1 1/4 | |||
2 | 2.375 | 60.3 | 3 | 3/4 |
3 | 1 | |||
3 | 1 1/4 | |||
3 | 1 1/2 | |||
2 1/2 | 2.875 | 73.0 | 3 1/2 | 1 |
3 1/2 | 1 1/4 | |||
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 | 3.500 | 88.9 | 3 1/2 | 1 |
3 1/2 | 1 1/2 | |||
3 1/2 | 2 | |||
3 1/2 | 2 1/2 | |||
3 1/2 | 4.000 | 101.6 | 4 | 1 1/4 |
4 | 1 1/2 | |||
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 4.500 | 114.3 | 4 | 1 1/2 |
4 | 2 | |||
4 | 2 1/2 | |||
4 | 3 | |||
4 | 3 1/2 | |||
5 | 5.563 | 141.3 | 5 | 2 |
5 | 2 1/2 | |||
5 | 3 | |||
5 | 3 1/2 | |||
5 | 4 | |||
6 | 6.625 | 168.3 | 5 1/2 | 2 1/2 |
5 1/2 | 3 | |||
5 1/2 | 3 1/2 | |||
5 1/2 | 4 | |||
5 1/2 | 5 | |||
8 | 8.625 | 219.1 | 6 | 3 |
6 | 3 1/2 | |||
6 | 4 | |||
6 | 5 | |||
6 | 6 | |||
10 | 10.750 | 273.1 | 7 | 4 |
7 | 5 | |||
7 | 6 | |||
7 | 8 | |||
12 | 12.750 | 323.9 | 8 | 5 |
8 | 6 | |||
8 | 8 | |||
8 | 10 |
Various Types of Stainless Steel Stub End
Stainless Steel Pipe Stub Ends
Stainless Steel Lap Joint Stub End
ANSI B16.9 Stub End, SS316, DN150, SCH 10S
Stub End Ss 304
316 Ss Stub Ends
Stainless Steel Stub End
Stainles Steel Stub End, 2IN, ANSI B16.9, 140mm
Stub End, Stainless Steel A403, 6 Inch
Stub End, ASTM A403 TP904L, SCH 10S, MSS SP-43, 3 Inch
SS Stub End Dimensions
NPS | OD | R Type A | T | F | G | R Type B |
1/2 | 21.3 | 3.05 | 2.11 | 50.8 | 34.9 | 0.76 |
3/4 | 26.7 | 3.05 | 2.11 | 50.8 | 42.9 | 0.76 |
1 | 33.4 | 3.05 | 2.77 | 50.8 | 50.8 | 0.76 |
1.1/4 | 42.2 | 4.83 | 2.77 | 50.8 | 63.5 | 0.76 |
1.1/2 | 48.3 | 6.35 | 2.77 | 50.8 | 73 | 0.76 |
2 | 60.3 | 7.87 | 2.77 | 63.5 | 92.1 | 0.76 |
2.1/2 | 73 | 7.87 | 3.05 | 63.5 | 104.8 | 0.76 |
3 | 88.9 | 9.65 | 3.05 | 63.5 | 127 | 0.76 |
3.1/2 | 101.6 | 9.65 | 3.05 | 76.2 | 139.7 | 0.76 |
4 | 114.3 | 11.18 | 3.05 | 76.2 | 157.2 | 0.76 |
5 | 141.3 | 11.18 | 3.40 | 76.2 | 185.7 | 1.52 |
6 | 168.3 | 12.7 | 3.40 | 88.9 | 215.9 | 1.52 |
8 | 219.1 | 12.7 | 3.76 | 101.6 | 269.9 | 1.52 |
10 | 273.1 | 12.7 | 4.19 | 127 | 323.9 | 1.52 |
12 | 323.9 | 12.7 | 4.57 | 152.4 | 381 | 1.52 |
14 | 355.6 | 12.70 | 4.78 | 152.4 | 412.8 | 1.52 |
16 | 406.4 | 12.7 | 4.78 | 152.4 | 469.9 | 1.52 |
18 | 457.2 | 12.70 | 4.78 | 152.4 | 533.4 | 1.52 |
20 | 508 | 12.70 | 5.54 | 152.4 | 584.2 | 1.52 |
24 | 609.6 | 12.7 | 6.35 | 152.4 | 692.2 | 1.52 |
Stainless Steel Stub End Weight
Normal Pipe Size In inch | ASME B16.9 STUB ENDS | |||
Schedule 5S | Schedule 10S | Schedule 40S | Schedule 80S | |
1/2 | 0.06 | 0.08 | 0.12 | 0.13 |
3/4 | 0.07 | 0.09 | 0.15 | 0.17 |
1 | 0.09 | 0.15 | 0.20 | 0.25 |
1 1/4 | 0.13 | 0.20 | 0.30 | 0.35 |
1 1/2 | 0.16 | 0.25 | 0.38 | 0.46 |
2 | 0.25 | 0.40 | 0.55 | 0.75 |
2 1/2 | 0.35 | 0.50 | 0.80 | 1.00 |
3 | 0.50 | 0.60 | 1.10 | 1.50 |
4 | 0.70 | 1.00 | 1.80 | 2.50 |
5 | 1.00 | 1.25 | 2.50 | 3.50 |
6 | 1.60 | 1.95 | 3.70 | 5.50 |
8 | 2.50 | 3.10 | 5.90 | 10.0 |
10 | 4.00 | 4.90 | 10.5 | 14.0 |
12 | 6.60 | 7.10 | 15.0 | 20.0 |
14 | 6.40 | 7.80 | 15.5 | 20.5 |
16 | 7.90 | 9.00 | 18.0 | 24.0 |
18 | 9.30 | 10.5 | 21.0 | 28.0 |
20 | 12.0 | 13.5 | 23.5 | 31.0 |
24 | 16.5 | 19.0 | 28.5 | 38.0 |
Stainless Steel Pipe Cap Types
Stainless Steel End Cap
SS Pipe Ends
Stainless Steel Pipe Cap
304 Stainless Steel Pipe Caps
ASTM A403 WP316L Cap, BW, ANSI B16.9
316 Stainless Steel End Caps
Pipe Stainless Steel Cap
End Cap Stainless Steel Cap
Stainless Steel Cap, ASTM A403, ANSI B16.9
316 Stainless Steel End Caps Dimensions
NPS | Length H | O.D. D | Length H(1) |
1/2 | 25 | 21.3 | 25 |
3/4 | 25 | 26.7 | 25 |
1 | 38 | 33.4 | 38 |
1.1/4 | 38 | 42.2 | 38 |
1.1/2 | 38 | 48.3 | 38 |
2 | 38 | 60.3 | 44 |
2.1/2 | 38 | 73 | 51 |
3 | 51 | 88.9 | 64 |
3.1/2 | 64 | 101.6 | 76 |
4 | 64 | 114.3 | 76 |
5 | 76 | 141.3 | 89 |
6 | 89 | 168.3 | 102 |
8 | 102 | 219.1 | 127 |
10 | 127 | 273 | 152 |
12 | 152 | 323.8 | 178 |
14 | 165 | 355.6 | 191 |
16 | 178 | 406.4 | 203 |
18 | 203 | 457 | 229 |
20 | 229 | 508 | 254 |
22 | 254 | 559 | 254 |
24 | 267 | 610 | 305 |
26 | 267 | 660 | - |
28 | 267 | 711 | - |
30 | 267 | 762 | - |
32 | 267 | 813 | - |
34 | 237 | 864 | - |
36 | 267 | 914 | - |
38 | 305 | 965 | - |
40 | 305 | 1016 | - |
42 | 305 | 1067 | - |
44 | 343 | 1118 | - |
46 | 343 | 1168 | - |
48 | 343 | 1219 | - |
SS 304 End Cap Weight
D(inch) | DN | OD | SCH40s | SCH5s | SCH20 | SCH10 | SCH30 | STD | SCH10s | SCH40 |
1/8" | 6 | 10.3 | 1.73 | 1.73 | 1.24 | 1.73 | ||||
1/4" | 8 | 13.7 | 2.24 | 2.24 | 1.65 | 2.24 | ||||
3/8" | 10 | 17.1 | 2.31 | 2.31 | 1.65 | 2.31 | ||||
1/2" | 15 | 21.3 | 2.77 | 1.65 | 2.77 | 2.11 | 2.77 | |||
3/4" | 20 | 26.7 | 2.87 | 1.65 | 2.87 | 2.11 | 2.87 | |||
1" | 25 | 33.4 | 3.38 | 1.65 | 3.38 | 2.77 | 3.38 | |||
11/4" | 32 | 42.2 | 3.56 | 1.65 | 3.56 | 2.77 | 3.56 | |||
11/2" | 40 | 48.3 | 3.68 | 1.65 | 3.68 | 2.77 | 3.68 | |||
2" | 50 | 60.3 | 3.91 | 1.65 | 3.91 | 2.77 | 3.91 | |||
21/2" | 65 | 73.0 | 5.16 | 2.11 | 5.16 | 3.05 | 5.16 | |||
3" | 80 | 88.9 | 5.49 | 2.11 | 5.49 | 3.05 | 5.49 | |||
31/2" | 90 | 101.6 | 5.74 | 2.11 | 5.74 | 3.05 | 5.74 | |||
4" | 100 | 114.3 | 6.02 | 2.11 | 6.02 | 3.05 | 6.02 | |||
5" | 125 | 141.3 | 6.55 | 2.77 | 6.55 | 3.40 | 6.55 | |||
6" | 150 | 168.3 | 7.11 | 2.77 | 7.11 | 3.40 | 7.11 | |||
8" | 200 | 219.1 | 8.18 | 2.77 | 6.35 | 7.04 | 8.18 | 3.76 | 8.18 | |
10" | 250 | 273.1 | 9.27 | 3.40 | 6.35 | 7.80 | 9.27 | 4.19 | 9.27 | |
12" | 300 | 323.9 | 9.53 | 3.96 | 6.35 | 8.83 | 9.53 | 4.57 | 10.31 | |
14" | 350 | 355.6 | 3.96 | 7.92 | 6.35 | 9.53 | 9.53 | 4.78 | 11.13 | |
16" | 400 | 406.4 | 4.19 | 7.92 | 6.35 | 9.53 | 9.53 | 4.78 | 12.70 | |
18" | 450 | 457.2 | 4.19 | 7.92 | 6.35 | 11.13 | 9.53 | 4.78 | 14.27 | |
20" | 500 | 508.0 | 4.78 | 9.53 | 6.35 | 12.70 | 9.53 | 5.54 | 15.09 | |
22" | 550 | 558.8 | 4.78 | 9.53 | 6.35 | 12.70 | 9.53 | 5.54 | ||
24" | 600 | 609.6 | 5.54 | 9.53 | 6.35 | 14.27 | 9.53 | 6.35 | 17.48 | |
26" | 650 | 660.4 | 12.70 | 7.92 | 9.53 | |||||
28" | 700 | 711.2 | 12.70 | 7.92 | 15.88 | 9.53 | ||||
30" | 750 | 762.0 | 6.35 | 12.70 | 7.92 | 15.88 | 9.53 | 7.92 | ||
32" | 800 | 812.8 | 12.70 | 7.92 | 15.88 | 9.53 | 17.48 | |||
34" | 850 | 863.6 | 12.70 | 7.92 | 15.88 | 9.53 | 17.48 | |||
36" | 900 | 914.4 | 12.70 | 7.92 | 15.88 | 9.53 | 19.05 | |||
38" | 950 | 965.2 | 9.53 | |||||||
40" | 1000 | 1016.0 | 9.53 | |||||||
42" | 1050 | 1066.8 | 9.53 | |||||||
44" | 1100 | 1117.6 | 9.53 | |||||||
46" | 1150 | 1168.4 | 9.53 | |||||||
48" | 1200 | 1219.2 | 9.53 |
Stainless Steel Pipe Fittings Manufacturing Process
Seamless and welded pipe with filler material are used to make stainless steel fittings. Plate is used to make huge diameter fittings.
A variety of procedures are utilised to create wrought fittings, including hot and cold forming processes.

Mandrel method (Hot Forming)

Extrusion Method

Hot Forming Method

Hydraulic Bulge Method

Outer Die Method

Deep Drawing Method
ASTM A403 Fitting Classes for WP Grades
WP-WX | RT all welds, whether they have filler metal or not. |
WP-W | Welded, RT or UT all pipe starting material welds made with filler metal. All fitting welds except as excluded in A/SA403 paragraph 5.4.3. If UT is substituted for RT, all welds must be examined 100% for their length as required by A/SA403 paragraph 5.6 |
WPgrade-grade-class | Fill in the grades (321-321H) and the class (321-321H) (S,W,WX, or WU). Fittings that meet all chemical and physical standards of both grades are considered.. |
WP-WU | UT all welds, whether they have filler metal or not. |
WP-S | SMLS |
SS Pipe Fittings HS Code
HS Code | Description |
---|---|
73072300 | BW Fitting |
73072200 | Threaded Elbows, Bends And Sleeves |
321H Stainless Steel Fitting Heat Treatment
Heat treatment is not required for hot finished pipe fittings, however it is required for cold finished pipe fittings according to the applicable ASTM standard.
The following are some of the most common heat treatments for fittings:

Manufacturing Equipment of Stainless Steel Weld Fittings


Elbow Bending


Elbow End Beveling Machine


Elbow Shape Forming


Equal Tee Beveling


Hot Induction Bend Bending


Welded Fittings Welding


Pipe Caps Machine


Pressing Machine


Tee Forming Equipment
ASTM A 403 Stainless Steel Fittings Value Added Services

Packaging of Stainless Steel Welded Fittings
Pallets, plywood cases, cartons, and other types of packaging are used on a regular basis. Stainless steel buttweld fittings are commonly packed in pallets or plywood containers. Plywood cases are used for less than 6 inches, and pallet cases are used for more than 6 inches. All customers' specific packing requirements are accepted by our organisation.


Bevelled Ends of Stainless Steel Seamless Fittings
All buttweld fittings have bevelled edges with a wall thickness greater than 4 mm for austenitic stainless steel and 5 mm for ferritic stainless steel. The shape of the bevel is determined by the thickness of the real wall. To be able to make a "Butt weld," you'll need bevelled ends.
Stainless Steel Seamless Fittings Applications
Pipe fittings have an infinite number of applications, just as pipes have an infinite number of applications. Pipe fittings have a variety of additional applications in pipes, including the following:


SS Pipe fittings are utilised in a variety of industries, including
Where We Supplied SS Pipe Fittings
Bp Exploration Project Shah Deniz - AZERBAIJAN
Jebel Ali Power And Desalination Station - UAE
Ras Abu Fontas B2 New Power & Water Island - UAE
Sakhalin 2 Project Lng Plant - RUSSIA
Kuwait Aromatics Project - KUWAIT
Zelzate Compression Station - BELGIUM
Solution treatment of SUS 304 Weld Fittings
Solution treatment | 1050-1100 ℃ |
Testing Inspection of Stainless Steel Buttweld Pipe Fittings


Chemical Composition Inspection


Burst Proof Testing


Coating Thickness Inspection


Dimensions Inspection


PMI Inspection


PT MT Inspection


Thickness Inspection


Ultrasonic Testing


X Ray Radiography Inspection
Our Esteemed Clients








Ready Stock List of Stainless Steel Pipe Fittings
A403 WP 304L Long Raidus Elbow, 90 Degree, SCH 120, DN350 | 1/2 45 Degree Street Elbow Stainless Steel |
SS Pipe Fittings | Butt Welded Reducing Tee, SS304 |
Reducer Conc, ASTM A403 WP316L, 6 X 4 Inch | Stainless Steel 30 Degree Elbow |
Mss Sp-43 Stainless Steel Fitting | Stainless Steel Tubing 90 Degree Elbow |
304l Stub End | 1/4 Stainless Steel Elbow |
Stainless Steel Flanged Tee | 1 Stainless Steel Street Elbow |
90 Degree Stainless Steel Bends | 1/4 Stainless Steel 90 Degree Elbow |
SS Pipe End Caps | 316 SS Fittings |
SS316 Pipe Elbow, 56 Inch, SCH 160 | A403 WP316 Stub End, DN40, 10S, RF, Sand Blasting |
SS 321 3d elbow | 310 Stainless Steel 6d elbow |
ASTM A403 WP316 Elbow, Long Radius, SCH 20 | SS 9d elbow |
ANSI B16.9 Elbow, ASTM A403 WP316L, SCH 10S | 1/8 Stainless Steel Elbow |
1 Inch Stainless Steel 90 Degree Elbow | 1 Inch Stainless Steel Elbow |
Stainless Steel Welded Fittings | Ss Bend Elbow |
Seamless Equal Tee, SS, 4 Inch, BW | Stainless Steel Pipe Bend |
SS Stub End | 304 SS Fittings |
Sch 10 Stainless Steel Pipe Fittings | ASTM A403 WP304L Stub End, DN40, SCH 40S |
Stainless Steel Mandrel Bends | SCH 80S Concentric Reducer, ASME B16.9, A403 WP304L, DN200 X DN150 |
ASTM A403 WP316L SMLS Elbow, 14IN, 90D, BW, SCH40 | Stainless Steel Steam Pipe Bends |
SS Concentric Reducer | Stainless Steel Cap |
1/2 Ss Elbow | Stainless Steel Flanged Reducer |
ASTM A403 WP321 Elbow, 180 Degree, DN100 | 3 Inch Stainless Steel Bends |
Stainless Steel 10d elbow | ASTM A 403 Stainless Steel Fittings |
Long Radius Stainless Elbow | Stainless Steel Equal Tee, SS316 |
Concentric Reducer, Stainless Steel SS304 | Stainless Steel Seamless Pipe Fittings |
180 Degree Short Radius Elbow, ASTM A403 WP304H, DN50, SCH 40S | ANSI B16.9 Stud Ends, ASTM A403 WP904L, 3 Inch, SCH 40S |
316l SS Fittings | 1/2 45 Degree Elbow Stainless Steel |
316L SS 5d elbow | Stainless Steel Welded Pipe Fittings |
45 Degree LR Seamless Elbow, A403 WP316L, ASME B16.9, DN80 | 45D Long Radius Elbow, ASTM A403 WP316L, 4 Inch, BW |
Stainless Steel Exhaust Bends | 180 Degree Stainless Steel Bends |
Stainless Steel Exhaust Pipe Bends | Stainless Steel 135 Degree Elbow |
Stainless Steel Tube Stub Ends | SS304 Concentric Reducer, SMLS, 2 X 1 Inch |
Stainless Steel 904L 8d elbow | Fabricated Stainless Steel Fittings |
304l Stainless Steel 4d elbow | 18 Inch Stainless Steel 90 Degree Elbow |
304 SS Weld Fittings | SS Equal Tee |
Advantages of 347 Stainless Steel Buttweld Fittings
Buttweld fittings have a number of intrinsic advantages over other types of piping.
