Duplex Steel Forged Fittings Manufacturer in India

Duplex Steel Forged Fittings
Detail information of duplex steel forged fittings
Custom Sizes Available
Discount On bulk order
MTC EN 10204 3.1/3.2
Delivery Time
  • Belgium – 10 days
  • UAE – 5 days
  • Kuwait – 10 days
  • USA – 40 days
Ready Stock Available Sizes 1/4 to 24 inch
Packing
  • Pack by bulk vessel or container
  • As your requirement
Grades available
  •  F51
  • F52
  • F53
  • F54
  • F55
  • F57
  • F59
  • F60
  • F61
Hardness
  • 293 HB max
  • 31 HR C max
Marking
  • Heat number
  • Grade
  • Manufacturers name
  • Dimensional standard
  • Size
Pressure Rating
  • 150 lbs
  • 2000 lbs
  • 3000 lbs
  • 6000 lbs
  • 9000 lbs
Type
  • Socket Weld
  • BSP Threaded
  • Screwed
  • NPT Threaded
Naman pipe mostly supply in
  • Oil and Gas
  • Marine
  • Chemical Processing
  • Pharmaceuticals
  • Power Generation
Third Party Inspections
  • TUV
  • DNV
  • IBR
  • BVIS
  • LLOYDS
  • IRS
  • IIB
  • SGS
  • PDIL

Supplier of SAF 2205 Threaded Elbow As Per ASTM A182 Standard

  • ASME B16.11
  • BS3799
  • ASTM A182
  • UNS S31803 / S32205
  • WERKSTOFF NR. 1.4462
  • Duplex 2205
  • ASTM A182

Table of Content

Duplex Stainless Steel Socket Weld Fittings Available in Size Range of 1/2 to 4 inch

Duplex Forging Dimension

Center to bottom
of socket
A		 Socket
Bore		 NPS Depth
Socket		 Socket
W.T.		 Body
W.T.
45° B J C G
12.5 27.30
27.05		 3/4" 13 4.90
4.25		 3.90
11.5 21.95
21.70		 1/2" 10 4.65
4.10		 3.75
14 34.05
33.80		 1" 13 5.70
5.00		 4.55
21 48.90
48.65		 1½" 13 6.35
5.55		 5.10
17 42.80
42.55		 1¼" 13 6.05
5.30		 4.85
25 61.35
61.10		 2" 16 6.95
6.05		 5.55
31.5 90.15
89.80		 3" 16 9.50
8.30		 7.60
29 74.20
73.80		 2½" 16 8.75
7.65		 7.00
41.5 115.80
115.45		 4" 19 10.70
9.35		 8.55

Stockist of Duplex 2205 Threaded Fittings in Pressure Range 3000# to 9000#

Specification List of Duplex Steel Forged Fittings

Sizes of Duplex Steel Forged Fittings
  • 1/8" to 4"NB

Manufacturing standards of SAF 2205 Threaded Elbow
  • ASME B16.11
  • ANSI B16.11
Pressure Class
  • 3000 LBS
  • 6000 LBS
  • 9000 LBS
Duplex Forged Fittings Connection Type
  • Threaded (NPT or BSPP)
  • Socket Weld (Weld In)
Duplex Threaded Fittings Standards
  • MSS SP-79
  • MSS SP-95
  • MSS SP-83
  • MSS SP-95
  • MSS SP-97
  • BS 3799
Origin & Mills
  • Korean
  • Ukraine
  • European
  • Japanese
  • USA
  • Indian
  • Russian
Thermal Expansion
  • 13.7 x10^-6 /K
Proof Stress of A182 F51 Socket Weld Elbow
  • 450 MPa
Hardness
  • 270 HB
Different types of Alloy 2205 threaded fittings
  • Threaded elbow
  • Threaded tee
  • Threaded cross
  • Threaded coupling
  • Threaded half coupling
  • Threaded cap
  • Bull plugs
  • Swage nipples
Different types of Duplex socket weld fittings
  • Socket weld elbow
  • Socket weld tee
  • Socket weld cross
  • Socket weld coupling
  • Socket weld half coupling
  • Socket weld cap
Testing Methods
  • Non-Destructive testing
  • Ultrasonic
  • Radiography
  • Magnetic particle test
  • Positive Material Identification
  • Liquid penetrant test
  • Tensile test
  • Metallurgical Tests
Test Certificates
  • 100% Radiography Test Report
  • NACE MR0175
  • NACE MR0103
  • EN 10204/3.1B
Surface Treatment of WNR 1.4462 Threaded Cap
  • Polished
  • Shot blasting
  • Sand blasting
Thread Types
  • NPT (ANSI B1.20.1)
  • NPTF (ANSI B1.20.3)
  • UNC (ANSI B1.1)
  • UNF (ASME B1.1)
  • BSP (ISO 228)
  • BSPT (DIN 2999)
  • BSPP (ISO 228-1)
Distributor of Duplex Socket Weld Elbow Stocks in 45°, 90° and 180°

DSS Threaded and Socket Weld Elbow Types

  • 90° Duplex Socket Weld Elbow
  • 45° Duplex Stainless Steel Socket Weld Elbow
  • 90° Duplex Steel Threaded Elbow
  • 45° DSS Threaded Elbow
  • Duplex Alloy Socket Weld Long Radius Elbow
  • Duplex 2205 Socket Weld Short Radius Elbow
  • Duplex SS 2205 Threaded Long Radius Elbow
  • 1.4462 Duplex 2205 Threaded Short Radius Elbow

Buy Duplex Steel Threaded Forged Fittings in BSPT, NPT and BSP Threads As Per Request

Duplex Socket Weld Fittings Thread Types

  • NPT
  • BSPP
  • NPTF
  • BSPT
  • BSP
  • UNC
  • UNF

ASME SA182M F53 Class 6000 Fittings Physical Properties

Mean coe. of thermal expansion 11 x 10^-6
Magnetic Permeability <50
(Kg.m-1) Density 7810
(N/mm2) Young’s Modulus 190 x 10^3
Specific Electrical Resistance, (µO.m) 20°C 0.85
(J.Kg-1.°K-1) Specific Heat, 20°C 400
20°C, Thermal conductivity 15

Duplex 2205 Socket Weld Elbow Equivalent

UNS WERKSTOFF NR.
S31803 / S32205 1.4462

Duplex 2205 Forged Fittings Types

Alloy 2205 Threaded Swage Nipple

Alloy 2205 Threaded Swage Nipple

2205 Socket Weld Equal Tee

2205 Socket Weld Equal Tee

2205 Duplex Stainless Steel Round Head Plug

2205 Duplex Stainless Steel Round Head Plug

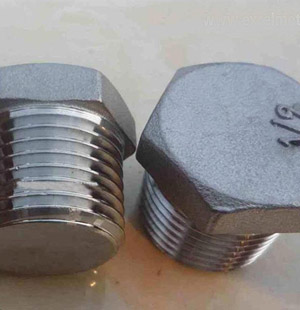

2205 Stainless Steel Hex Head Plug

2205 Stainless Steel Hex Head Plug

Duplex Steel Socket Weld Cap

Duplex Steel Socket Weld Cap

A182 F51 Bull Plug

A182 F51 Bull Plug

1.4462 Stainless Steel Threaded Cap

1.4462 Stainless Steel Threaded Cap

UNS S32750 Threaded Full Coupling

UNS S32750 Threaded Full Coupling

UNS S31803 Threaded Unequal Tee

UNS S31803 Threaded Unequal Tee

Duplex Stainless Steel Threaded Half Coupling

Duplex Stainless Steel Threaded Half Coupling

Saf 2205 Socket Weld Equal Cross

Saf 2205 Socket Weld Equal Cross

Alloy 2205 Threaded Equal Cross

Alloy 2205 Threaded Equal Cross

UNS S31803 Socket Weld Unequal Tee

UNS S31803 Socket Weld Unequal Tee

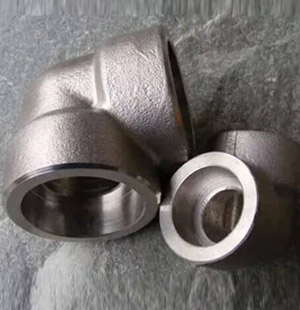

2205 Duplex Stainless Steel 90 Degree Socket Weld Elbow

2205 Duplex Stainless Steel 90 Degree Socket Weld Elbow

2205 Stainless Steel Socket Weld Half Coupling

2205 Stainless Steel Socket Weld Half Coupling

Duplex Steel 45 Degree Threaded Elbow

Duplex Steel 45 Degree Threaded Elbow

A182 F51 90 Degree Threaded Elbow

A182 F51 90 Degree Threaded Elbow

1.4462 Stainless Steel 90 Degree Threaded Equal Tee

1.4462 Stainless Steel 90 Degree Threaded Equal Tee

UNS S32750 Threaded Union

UNS S32750 Threaded Union

UNS S31803 Threaded Unequal Cross

UNS S31803 Threaded Unequal Cross

Duplex Stainless Steel Threaded Boss

Duplex Stainless Steel Threaded Boss

Saf 2205 Socket Weld Full Coupling

Saf 2205 Socket Weld Full Coupling

Alloy 2205 Socket Weld Unequal Cross

Alloy 2205 Socket Weld Unequal Cross

2205 45 Degree Socket Weld Elbow

2205 45 Degree Socket Weld Elbow

1.4462 Stainless Steel Threaded Hex Nipples

1.4462 Stainless Steel Threaded Hex Nipples

UNS S32750 Square Head Plug

UNS S32750 Square Head Plug

UNS S31803 Forged Fittings Mechanical Properties

Melting Point (°F) Density (lb/in 3) Density (g/cm 3) Melting Point (°C)
2588 – 2669 0.285 7.805 1420 – 1465

Duplex Steel Socket Weld Fittings Chemical Composition

Grade Fe Mn C Si S P Cr Ni Mo N
S31803 63.72 min 2.00 max 0.030 max 1.00 max 0.020 max 0.030 max 22.0 – 23.0 4.50 – 6.50 3.0 – 3.5 0.14 – 0.20
S32205 63.54 min 2.00 max 0.030 max 1.00 max 0.020 max 0.030 max 21.0 – 23.0 4.50 – 6.50 2.50 - 3.50 0.8 – 0.20

SAF 2205 Forged Fittings Weight Chart

Duplex Forging Dimension

Threaded Fittings

Size / Product 1/4" 1/8" 3/8" 3/4" 1/2" 1" 1-1/2" 1-1/4" 2" 3" 2-1/2" 4"
45 Elbow 2000 0.08 0.09 0.1 0.27 0.2 0.41 0.82 0.68 1.41 5.44 3.46 8.96
3000 0.12 0.09 0.24 0.56 0.34 0.94 2.05 1.03 2.23 5.97 3.71 8.96
6000 0.27 0.11 0.39 1.07 0.63 1.27 2.54 2.24 4.37 14.16 7.01 11.36
Hex. Nipple 3000 0.04 0.03 0.05 0.15 0.09 0.47 0.62 0.45 1.03 2.22 1.51 4
90 Elbow 2000 0.08 0.1 0.13 0.35 0.25 0.53 1.06 0.82 1.7 4.81 3.14 10.21
3000 0.14 0.1 0.29 0.69 0.43 1.14 2.63 1.42 2.92 8.88 5.99 14.85
6000 0.33 0.17 0.45 1.31 0.8 1.61 3.79 2.93 7.31 17.73 9.88 15.76
Tee 2000 0.12 0.13 0.17 0.43 0.31 0.69 1.39 1.07 2.16 6.12 4.11 14.74
3000 0.2 0.13 0.38 0.92 0.56 1.49 3.27 1.76 3.53 10.19 6.99 19.13
6000 0.45 0.2 0.63 1.65 0.98 2.17 4.71 3.74 7.88 21.7 13.11 18.53
Full Coupling 3000 0.04 0.05 0.06 0.19 0.13 0.45 1.07 0.81 1.4 3.38 2.29 6.28
6000 0.13 0.08 0.2 0.5 0.34 0.87 1.94 1.09 2.87 6.1 4.2 10.04
Cross 2000 0.14 0.17 0.21 0.54 0.39 0.83 1.75 1.26 2.65 7.58 5.26 16.35
3000 0.26 0.17 0.44 1.06 0.72 1.79 3.93 2.13 4.27 12.45 8.51 21.93
Half Coupling 3000 0.02 0.02 0.03 0.1 0.06 0.23 0.54 0.34 0.7 1.68 1.13 3.11
6000 0.06 0.07 0.09 0.24 0.16 0.45 0.96 0.55 1.7 3.05 2.1 5.02
Cap 3000 0.04 0.02 0.05 0.18 0.11 0.37 0.72 0.62 1.09 3.5 2.22 4.84
6000 0.06 0.06 0.09 0.4 0.26 0.71 0.77 0.59 2.23
Red Coupling 3000 0.05 0.05 0.06 0.19 0.13 0.39 0.99 0.68 1.37 3.08 2.07 5.44
6000 0.06 0.08 0.18 0.41 0.31 0.85 1.81 1.05 3.4 6.1 4.2 10.04
Street Elbow 3000 0.11 0.13 0.22 0.53 0.31 1.02 2.01 1.13 2.91
Union 3000 0.28 0.28 0.24 0.48 0.34 0.77 1.63 1.03 2.43 5.27 3.63 12
Hex. Head Plug 0.03 0.01 0.05 0.14 0.07 0.22 0.59 0.44 1.03 2.6 1.8 5.2
Square Head Plug 0.01 0.01 0.03 0.09 0.05 0.16 0.38 0.27 0.63 1.53 0.96 3.83
Round Head Plug 0.45 0.02 0.07 0.2 0.12 0.34 0.79 0.55 1.47 3.26 2.34 6.24

Socket Weld Fittings

Size / Product 4" 1/4" 1/8" 3/8" 3/4" 1/2" 1-1/4" 1" 1-1/2" 2-1/2" 2" 3"
45 Elbow 3000 9.41 0.07 0.08 0.11 0.28 0.2 0.69 0.42 0.8 2.53 1.35 5.1
6000   0.14 0.09 0.26 0.57 0.36 1.11 0.92 2.01   2.09
90 Elbow 3000 10.95 0.08 0.09 0.12 0.33 0.22 0.84 0.53 1.08 3.2 1.68 5.38
6000   0.15 0.1 0.29 0.73 0.4 1.48 1.17 2.79   3.28
Tee 3000 13.92 0.09 0.13 0.15 0.42 0.29 1.04 0.65 1.35 3.98 2.04 5.9
6000   0.2 0.14 0.43 0.94 0.56 1.93 1.49 3.37   3.95
Full Coupling 3000 2.85 0.05 0.04 0.07 0.17 0.13 0.45 0.29 0.59 1.4 0.86 1.78
6000   0.07 0.05 0.114 0.27 0.204 0.6 0.44 1.11   1.62
Cross 3000 14.58 0.13 0.16 0.2 0.47 0.35 1.12 0.73 1.58 4.37 2.25 6.69
6000   0.26 0.17 0.45 1.07 0.67 2.26 1.75 3.96   4.42
Half Coupling 3000 3.71 0.05 0.04 0.07 0.21 0.13 0.34 0.3 0.66 1.63 1.09 2.1
6000   0.09 0.06 0.12 0.31 0.21 0.75 0.51 1.25   1.92
Cap 3000 4.24 0.04 0.03 0.07 0.16 0.1 0.45 0.25 0.59 1.43 0.96 2.74
6000   0.08 0.05 0.1 0.23 0.16 0.64 0.36 0.94   1.41
Red Coupling 3000 3.31 0.05 0.04 0.07 0.19 0.13 0.49 0.27 0.59 1.42 0.97 1.88
6000         0.33 0.24 0.75 0.65 1.2   2.12
Union 3000 11.59 0.28 0.28 0.25 0.49 0.35 1.1 0.81 1.61 3.5 2.16 5.15

Alloy 2205 Nipple Applications

Dimension Table of Duplex Elbow
  • Power Generation
  • Specialty Chemicals
  • Pharmaceuticals
  • Sea Water Equipment
  • Gas Processing
  • Petrochemicals
  • Chemical Equipment
  • Pulp and Paper Industry
  • Condensers
  • Heat Exchangers
  • Pharmaceutical Equipment
  • Off-Shore Oil Drilling Companies

Benifits of Using DSS Forged Fittings in Oil and Gas Industry

  • Resistance to Corrosion
  • Durability
  • High Strength
  • Versatility
  • Cost-Effective

Check our material dispatch in the following countries

Lake Charles Lng Liquefaction Plant-USA

Lake Charles Lng Liquefaction Plant-USA

Adco Jebel Dhanna Crude Storage Tanks

Adco Jebel Dhanna Crude Storage Tanks

Qatar Petrochemical Company- Qatar

Qatar Petrochemical Company- Qatar
