Valves are important devices in the piping industry as it controls and regulates the flow of media. The Duplex Butterfly Valves are designed with a quarter-turn rotatory motion that influences the flow. These valves have a compact and lightweight design having a short circular body. The duplex butterfly valve / 2205 butterfly valve has a simple construction with a disc connected to the rod. These valves have superior corrosion resistance properties and are utilized for on and off or modulating services. Duplex Stainless Steel Butterfly Valves are very precise and are very reliable. These valves get their name due to their movement shaping them into the form of a butterfly. They are very easy to maintain in difficult conditions. The Duplex 2205 Butterfly Valves require less structural support and can handle toxic and reducing media. These valves can withstand extreme heat and cold ensuring a strong sealing in the system. A Duplex Steel Wafer Type Butterfly Valve is designed with four holes that easily align to subsequent pipelines. These valves clamp easily between two or more fixtures in the piping system. The Duplex Stainless Steel Lug Butterfly Valve has threaded tapped lugs that are positioned well across bolt connections. They are well suited for an end-to-end service and have high performance in the system. CD3MN Butterfly Valve has a microstructure of both austenitic and ferritic grades.
The UNS S31803 Instrumentation Butterfly Valves help in the measurement and safety of instrument measuring services. These valves are reliable and can be operated manually or automatically. A UNS S32205 Pneumatic Butterfly Valve is designed to control and modulate the flow of air and gas. These valves have a higher nitrogen content and showcase superior corrosion resistance properties. CE3MN Flanged Butterfly Valve uses a gasket to securely seal different components efficiently.
High quality Duplex 2205 Butterfly Valves manufacturer in Mumbai, lowest price of UNS S32205 Pneumatic Butterfly Valve in India
Table of Content
Duplex Butterfly Valves Specification
Size in Mm | 50 to 600mm |
---|---|
Body | Duplex 2205 |
Pressure Rating | 15,000 PSI, 6000 PSI, 1500 PSI, 20000 PSI, 10000 PSI, 3000 PSI Duplex Butterfly Valve Manufacturer |
Seat | PTFE coated NBR |
Applications | Petro- Chemical, Oil & Gas, Purity & Some Marine & Industrial |
Testing and Inspection | Manufacturer Test Certificate as per EN 10204 / 3.1, Third Party Inspection, Raw Materials Certificate, Buyer Inspection |
Operating Temperature | UPTO 1200 °C |
Supplier of ASTM A890/995 GR.CE3MN Duplex Steel Wafer Type Butterfly Valve in India, check CD3MN Flanged Butterfly Valve price in Mumbai
Duplex 2205 Butterfly Valves Price List
Per Piece
Duplex Butterfly Valve 4a/epdm/gear Size:40
Per Piece
Butterfly Valve Duplex Pn16 Gear Operate Size:400mm
Per Piece
Duplex 4a/s31803/epdm/gear Size:10 Butterfly Valve
Per Piece
Duplex 6a Butterfly Valve Class #150
Per Piece
Butterfly Valve 95 100#150 Wf #150 Wcb/cd3mn
Per Piece
Duplex Butterfly Valve 12 100 Pn 16 Wf #150
CD3MN Butterfly Valve Properties
Size in mm | Temperature | Torque (Nm) | Pressure Range | ISO Mtg | Square drive size |
---|---|---|---|---|---|
150 | -10°C to 120°C | 133.80 | 0 to 10 Bar | F07 | 14mm |
500 | -10°C to 120°C | 1,617.00 | 0 to 10 Bar | F14 | 27mm |
65 | -10°C to 120°C | 25.20 | 0 to 10 Bar | F05 | 9mm |
80 | -10°C to 120°C | 33.60 | 0 to 10 Bar | F05 | 9mm |
400 | -10°C to 120°C | 1,133.00 | 0 to 10 Bar | F14 | 22mm |
600 | -10°C to 120°C | 2,622.00 | 0 to 10 Bar | F16 | 36mm |
450 | -10°C to 120°C | 1,253.00 | 0 to 10 Bar | F14 | 27mm |
50 | -10°C to 120°C | 18.60 | 0 to 10 Bar | F05 | 9mm |
100 | -10°C to 120°C | 56.00 | 0 to 10 Bar | F07 | 11mm |
300 | -10°C to 120°C | 699.00 | 0 to 10 Bar | F10 | 22mm |
125 | -10°C to 120°C | 53.10 | 0 to 10 Bar | F07 | 14mm |
200 | -10°C to 120°C | 297.00 | 0 to 10 Bar | F10 | 17mm |
250 | -10°C to 120°C | 486.00 | 0 to 10 Bar | F10 | 22mm |
350 | -10°C to 120°C | 825.00 | 0 to 10 Bar | F10 | 22mm |
Duplex Stainless Steel Butterfly Valves Dimension

DN | P | C | H | AS2129 Table E | ANSI 150 | L0 | BS4504 PN10 | AS2129 Table D | Upper Flange | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D1 | n-d1 | D1 | n-d1 | D1 | n-d1 | D1 | n-d1 | K | E | z-d | g | h | |||||
65 | 9 | 44.7 | 296 | 127 | 4-18 | 139.5 | 4-19 | 220 | 145 | 4-18 | 127 | 4-18 | 77 | 50 | 4-7 | 35 | 3 |
150 | 14 | 55.8 | 397 | 235 | 4(8)-22 | 241.5 | 4(8)-22 | 255 | 240 | 4(8)-23 | 235 | 4(8)-18 | 90 | 70 | 4-9 | 55 | 3 |
50 | 9 | 42 | 273 | 114 | 4-18 | 120.5 | 4-19 | 220 | 125 | 4-18 | 114 | 4-18 | 77 | 50 | 4-7 | 35 | 3 |
80 | 9 | 45.2 | 308 | 146 | 4-18 | 152.5 | 4-19 | 220 | 160 | 4(8)-18 | 146 | 4-18 | 77 | 50 | 4-7 | 35 | 3 |
100 | 70 | 52.1 | 346 | 11 | 90 | 190.5 | 4(8)-19 | 255 | 180 | 4(8)-18 | 178 | 4(8)-18 | 4-9 | 55 | 3 | ||
200 | 17 | 60.6 | 480 | 292 | 4(8)-22 | 298.5 | 4(8)-22 | 358 | 295 | 4(8)-23 | 292 | 4(8)-18 | 125 | 102 | 4-12 | 70 | 3 |
125 | 14 | 54.4 | 372 | 210 | 4(8)-18 | 216 | 4(8)-22 | 255 | 210 | 4(8)-18 | 210 | 4(8)-18 | 90 | 70 | 4-9 | 55 | 3 |
250 | 102 | 65.6 | 540 | 22 | 125 | 362 | 4(12)-25 | 500 | 350 | 4(12)-23 | 356 | 4(12)-22 | 4-12 | 70 | 3 | ||
300 | 22 | 76.9 | 624 | 406 | 4(12)-26 | 432 | 4(12)-25 | 500 | 400 | 4(12)-23 | 406 | 4(12)-22 | 125 | 102 | 4-12 | 70 | 3 |
Manufacturer of Duplex Flanged Butterfly Valve and A995 GR 4A Eccentric Butterfly Valve accordance to EN 12266, Api 598, ISO 5208 standards
UNS S32205 Pneumatic Butterfly Valve components
Butterfly valve body :
Butterfly valves feature bodies that fit between two pipe flanges, with lug and wafer body designs being the most prevalent.
Butterfly valve disk :
The disc is similar to a plug in a plug valve, a gate in a gate valve, or a ball in a ball valve in terms of stopping flow. In order to optimise flow, sealing, and/or operating torque, several disc designs and orientations are used.
Butterfly valve Stem :
The butterfly valve stem can be a single-piece or a two-piece (split-stem) design. Most robust seated designs insulate the stem from the media, enabling for more effective material choices in terms of cost and mechanical qualities.
Butterfly valve Seat :
To produce cutoff, the seat of a resilient-seat butterfly valve uses an interference fit between the disc edge and the seat. The seat material can be produced from a variety of elastomers or polymers. The seat can be pushed or secured into place, or it might be attached to the body.
Advantages of Duplex Butterfly valves
Duplex Stainless Steel Lug Butterfly Valve Disadvantages
Duplex Butterfly Valves Types
UNS S32205 Pneumatic Butterfly Valve
UNS S31803 Instrumentation Butterfly Valves
CD3MN Butterfly Valve
Duplex Stainless Steel Butterfly Valves
Duplex Steel Wafer Type Butterfly Valve
Duplex 2205 Butterfly Valves
CE3MN Flanged Butterfly Valve
Duplex Butterfly Valves
Duplex Stainless Steel Lug Butterfly Valve
Installation Procedures of Duplex Stainless Steel Butterfly Valves

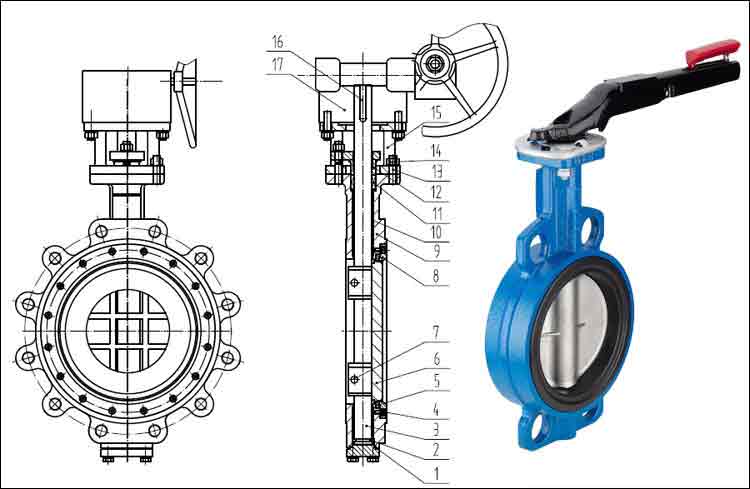

Duplex 2205 Butterfly Valves Structure
Numbaer. | Material Used | Parts Name |
1 | PTFE | Gasket |
2 | A182 F51 | Split ring |
3 | A182 F51 | Stem |
4 | A182 F51 | Screw |
5 | PTFE/RPTFE | Seat |
6 | A890 4A | Disc |
7 | A182 F51 | Pin |
8 | A890 4A | Seat retainer |
9 | A890 4A | Body |
10 | PEEK | Bearing |
11 | PTFE | Packing |
12 | A182 F51 | Gland bushing |
13 | A193 B8M | Double-end bolt |
14 | A194 8M | Hexagon nut |
15 | A351 CF8M | Bracket |
16 | UNS G10450 | Key |
17 | CF8M / WCB | Gearbox device |
UNS J92205 Double Offset Butterfly Valve and Duplex Steel Sanitary On Off Butterfly Valve manufacturer in Mumbai, check online price list and configuration
