Top notch ASME SA 928 UNS S32760 EFW SAW pipe supplier in India
Table of Content
Manufacturer of SA 928 UNS S32760 Electric Fusion Welded Pipe in Mumbai, Check Sizes
ASTM A928 UNS S32760 sizes and strength
Outside Dia
- SA 928 UNS S32760 EFW pipe OD : 219.1 – 609.6mm
Inside Dia
- ID : 8.8 TO 150.0
ASTM A928 UNS S32760 Length
- 3.5 – 6 mtrs
Wall thickness
- 2.5 – 14.0mm
SA 928 UNS S32760 EFW pipe Tensile Strengths
- 730 MPa
SA 928 UNS S32760 fusion welded pipe Yield Strength
- 550 Mpa
Custom size/ cut to length
- Mail us at info@namanpipe.com
Schedule chart
- SCH5/5S
- SCH10S
- SCH10
- SCH20
- SCH30
- SCH40S/STD
- SCH40
- SCH60
- SCH80S/XS
- SCH80
- SCH100
- SCH120
- SCH140
- SCH160
Buy ASTM A928 S32760 EFW pipe Passivated and Solution Annealed Surface Treatment
SA928 UNS S32760 EFW pipe specification
Material grade
- UNS S32760
Manufacturing type
- EFW
PREN
- 41
Solution treatment & annealing of A928 S32760 super
duplex EFW pipe
- 1110-1140ºC
SA 928 S32760 EFW welding pipe equivalent standard
- UNS S32760
- 1.4501
Inventory delivery time
- 3-5 days
Origin of material
- European
- Japanese
- USA
- Korean
- Ukraine
- Indian
- Russian
Need urgent delivery
- Get Quick Quote & delivery by Air, mail us at info@namanpipe.com
SA 928 UNS S32760 EFW Pipe Treatment
- Passivated
- Pickled (As per ASTM A380)
- Welded condition
- Cleaned
- Precleaned
- Solution annealed
Delivery time (If not in Stock)
- 10-12 days
MTC
- EN 10204 type 3.1
Manufacturing tolerance
- ±12.5%
SA928 S32760 electric welding pipe pickling and
passivation
- ASTM A380 (descaled and acid cleaned)
- Pickling not required for Machined surface
Delivery state choice
- Cold rolled / cold drawn
- Annealed
- Pickled
- Polished
- Sand blasted
ASTM A928M EFW straight welded pipe surface finish
- Passivated
- Pickled (As per ASTM A380)
- Welded condition
- Precleaned
Value added services offer by Naman pipe & tubes
- Threading
- Cutting
- Beveling
- Polishing
A928 S32760 electric fusion welded pipe Welding methods
- GTAW welding
- Plasma
- TIG
- SAW welding
Marking as per MSS-SP-25
- Identification and marking of pipe
- Specification and grade of material.
- Heat Number & Batch Number.
- The nominal pipe size (NPS).
- Sizes & wall thickness
- ASTM A928 grade S32760 EFW welded pipe shall be marked by vibro-etching.
Manufacturing process
- Welding (outside & inside)
- JCO forming press
- Heat treatment
- Spiral/ helical mill
Mechanical test of A928 S32760 super duplex EFW pipe
- Reverse flattening test
- Tension test
- Hardness test
- 100% PMI tested
- Flange test (for A928 UNS S32760 welded pipe)
Types of SA 928 UNS S32760 EFW pipe

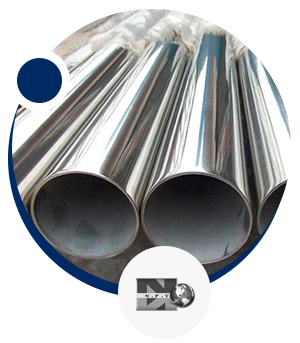

- SA 928 UNS S32760 EFW SAW pipe
- SA928 S32760 EFW straight welded pipe
Uses & applications
- Desalination plants
- Seawater systems
- Heat exchangers
- Subsea pipework systems
Stockist of SA 928 S32760 EFW Straight Welded Pipe Provide Various Testing and Documents
A928 UNS S32760 welded pipe Testing requirements and documents
European Standard
- EN 10296-2 (welded pipe)
- EN 10312 (welded pipe)
- EN 10217-7 (welded pipe)
Dimensional standard
- ASME B36.19M
OD & ID american standard
- DIN EN ISO 1127
- ASTM A999 / A999M
- A1016 / A1016M
Testing methods
- NACE TM 0177 (Stress Corrosion Cracking in H2S environments)
- Corrosion test as per ISO 17781
- Microstructure examination as per ISO 17781
- Charpy impact testing (ISO 17781)
- Microstructure examination (ISO 17781)
- NACE MR0103/ ISO 17945 (Resistant to Sulfide Stress Cracking)\
- NACE MR0175/ ISO 15156 (H2S Containing Environments)
- NACE SP0391 (Sulphuric Acid)
Support documents list with each delivery
- Purchase Requisitions
- Manufacturing, testing and inspection procedures
- Cross Sectional Assembly Drawings
- Calculation reports & Welding Procedures
- NDE Procedure, PMI Procedure, Testing Procedures & PWHT Procedure.
- Nonconformance records & Listing of applicable and authorized concessions.
- Galvanizing certificates
- NDE, PMI including overlay NDE, thickness check, Ferrite check,
- HIC test certificates
- Hardness testing & Impact test result
SA 928 S32760 EFW welding pipe chemical composition
|
Ni
Nickel 8.0 |
 |
C
Carbon 0.02 |
|
Mo
Molybdenum 4.0 |
Cr
chromium 25 |
|
|
N
Nitrogen 0.27 |
Others
- |
ASTM A928 S32760 EFW SAW pipe mechanical properties
|
Hardness (HB) MAX
270 |
 |
Tensile strength Mpa min
750 |
|
Yeild strength Mpa min
550 |
Elogation %
25 |
Read More About A928 S32760 Super Duplex Fusion Welded Pipe Hardness and Physical Properties
Physical properties of SA 928 UNS S32760 EFW pipe
| Magnetic Permeability (20°C) | 33 |
| Density (Kg/m3) | 7810 |
| Specific Heat, 20°C (J/kg.K) | 475 |
| Young’s Modulus (kN/mm2) | 199 |
| Specific Electrical Resistance, 20°C (µΩ.m) | 0.8 |
| Mean coefficient of thermal expansion, 20-300°C (m/m/oC) | 11.1 x 10-6 |
| Fracture Toughness, kQ (MPa/m2) | 98 |
| Thermal conductivity, 20°C (W/m.K) | 14.2 |
Tensile & hardness of A928 S32760 EFW pipe
| Tensile | Hardness |
|---|---|
| 730 MPa | 290 HB |
SA928 S32760 EFW welding pipe weight chart
| NPS in inch | OD | Wall Thickness | Weight | Weight |
|---|---|---|---|---|
| milimeter | milimeter | kg/Mtr | Lb/ft | |
| 1/2 | 21 | 2.0769 | 1.0268 | 0.0851 |
| 3/4 | 27 | 2.087 | 1.0684 | 1.0131 |
| 1 | 33 | 3.0378 | 2.0501 | 1.0679 |
| 1 1/4 | 42 | 3.0556 | 3.0385 | 2.0273 |
| 1 1/2 | 48 | 3.0683 | 4.0048 | 2.0718 |
| 2 | 60 | 3.0912 | 5.0441 | 3.0653 |
| 3 | 89 | 5.0486 | 11.0284 | 7.0576 |
| 6 | 168 | 4.0775 | 19.0252 | 12.0924 |
| 5.0563 | 22.0318 | 14.0983 | ||
| 7.0112 | 58.0263 | 18.0974 | ||
| 9.0525 | 37.0285 | 25.0031 | ||
| 10 | 273 | 4.0775 | 31.0588 | 21.0207 |
| 6.035 | 41.0759 | 28.0035 | ||
| 8.0738 | 56.0946 | 38.0231 | ||
| 11.0125 | 71.0852 | 48.0238 | ||
| 14 | 356 | 4.0775 | 41.0308 | 27.0732 |
| 6.035 | 54.0685 | 36.0713 | ||
| 7.0925 | 67.0939 | 45.0611 | ||
| 11.0125 | 94.0498 | 63.0441 | ||
| 18 | 457 | 5.0563 | 61.0948 | 41.0588 |
| 7.0137 | 79.0208 | 53.0176 | ||
| 9.0525 | 105.0144 | 70.0588 | ||
| 12.07 | 139.0198 | 93.045 | ||
| 24 | 610 | 6.035 | 94.0456 | 63.0413 |
| 7.0925 | 117.0573 | 18.0932 | ||
| 11.0125 | 164.0176 | 110.0219 | ||
| 15.0875 | 232.041 | 156.0028 | ||
| 36 | 914 | 6.035 | 142.018 | 95.0453 |
| 7.0925 | 177.0133 | 118.0918 | ||
| 11.0125 | 247.079 | 166.0353 | ||
| 15.0875 | 351.0723 | 236.0128 | ||
| 48 | 1219 | 9.0525 | 284.0112 | 190.0738 |
| 12.07 | 377.0822 | 253.065 | ||
| 22.0225 | 655.0969 | 440.0383 |
SA928 S32760 electric welding pipe corrosion testing
| STEEL GRADE | CORROSION TEST | TEST CONDITIONS | ACCEPTANCE CRITERIA |
|---|---|---|---|
| UNS S32760 | ASTM G48 Method A | As per ISO 17781 | As per ISO 17781 |
How cut to length ASTM A928 S32760 pipe save price for buyer
- Reduced Waste
- Optimized Inventory Management
- Lower Processing Costs
- Reduced Material Handling Costs
- Improved Project Efficiency
- Precision and Accuracy
- Good Cost Forecasting
ASTM A928M UNS S32760 electric fusion welded pipe toughness
| Temperature | +70A°F (ft. lbs) | -60A°F (ft. lbs) | -50A°C (J/cm) | +20A°C (J/cm) |
|---|---|---|---|---|
| Average (5) | 87 | 65 | 90 | 150 J/cm |
| Single | 65 | 54 | 75 | 90 |
Various types of ASTM A928 UNS S32760 pipe
ASTM A928 UNS S32760 electric welding pipe
SA 928 UNS S32760 electric fusion welded pipe
ASTM A928 S32760 EFW welded pipe
SA928 S32760 welded pipe
A928 S32760 EFW welding pipe
SA 928 S32760 EFW SAW pipe
A928 UNS S32760 EFW straight welded pipe
SA 928 UNS S32760 fusion welded pipe
A928 S32760 EFW pipe
What are the Top 5 advantages of ASTM A928 S32760 ERW pipe
- Superior Corrosion Resistance
- High Strength
- Durability and Longevity
- Thermal Stability
- Good Weldability
- Cost-Effectiveness
- Good Weldability
Heat treatment of SA 928 UNS S32760 fusion welded pipe
| Heat treatment | 1110-1140 ºC |
|---|
