Top notch ASME SA790 S32101 Seamless Pipe supplier in India
Table of Content
Refer outside diameter of A790 S32101 Round Pipe
Sizes and strength of ASTM A790 UNS S32101 pipe
OD
- SA 790 UNS S32101 Seamless Pipe: 1/2” to 8”
- SA790 S32101 Welded Pipe: 6” to 24”
ID
- 8.8mm to 150mm
Wall Thickness
- 0.5 – 20mm
Length
- 6 meters (21 feet)
- Custom/ cut to size
A790 S32101 Material Yield Strength
- 80 Ksi
- 550 Mpa
SA 790 UNS S32101 Pipe Tensile Strength
- 116 Ksi
- 800 Mpa
Schedule Chart
- SCH100
- SCH5/5S
- SCH20
- SCH80S/XS
- SCH160 XXS
- SCH10S
- SCH120
- SCH140
- SCH30
- SCH60
- SCH80
- SCH40S/STD
- SCH10
- SCH40
Custom Size/ Cut to Length
- Mail us at info@namanpipe.com
SA 790 S32101 seamless pipe specification table
Cold and Hot Finished manufacturing process are used to manufacture ASTM A790 UNS S32101 Exhaust Pipe
Material Grade
- UNS S32101
Solution Treatment & Annealing of A790 S32101 Round Pipe
- 250℃ = Re > 275 MPa
Delivery Time (If not in Stock)
- 10-12 days
Inventory Delivery Time
- 3-5 days
Manufacturing Type
- EFW
- Seamless
- Welded
- ERW
Need Urgent Delivery
- Get Quick Quote & delivery by Air, mail us at info@namanpipe.com
A790 S32101 Bright Annealed Pipe Treatment
- Annealed
- Solution Annealed
- Aging
MTC
- NACE MR-0175
- EN 10204-3.1
Manufacturing Tolerance
- ±12.5%
Origin of Material
- Indian
- USA
- European
- Russian
- Korean
- Japanese
A790 UNS S32101 SMLS Pipe Pickling and Passivation
- ASTM A380 (descaled and acid cleaned)
- Pickling not required for Machined surface
SA 790 UNS S32101 Pipe Equivalent Standard
- 1.4162
- X2CrMnNiN21-5-1
- S32101
Delivery State Choice
- Sand Blasted
- Cold Rolled / Cold Drawn
- Pickled
- Polished
- Annealed
SA 790 S32101 Solution Annealed Pipe Surface Finish
- Cleaned
- Precleaned
- Passivated
- Pickled (As per ASTM A380)
Uses & Applications
- Chloride environments
- Boilers
- Superheaters
- Sea water
- Fluid and gas transport
Types of ASTM A790 S32101 Pipe
- ASTM A789M U bend tube
- A790 S32101 straight tubing (seamless)
Manufacturing process
- Cold Finished
- Hot Finished
Value Added Services Offer By Naman Pipe & Tubes
- Beveling
- Threading
- Polishing
- Cutting
Marking as per MSS-SP-25
- Heat Number & Batch Number.
- Identification marking of pipe
- SA789 S31803 tubes shall be marked by vibro-etching.
- Addition to the marking required
- Specification and grade of material.
- Sizes and wall thickness
- Nominal pipe size (NPS).
SA 790 UNS S32101 Material Welding Methods
- Plasma arc welding (PAW)
- Shielded metal arc welding (SMAW)
- Flux-cored arc welding (FCW)
- Gas tungsten arc welding TIG (GTAW)
- Gas metal arc welding MIG (GMAW)
- High-frequence welding
Mechanical Test of A790 S32101 Duplex Pipe
- Flaring test (for ASTM A790 S32101 seamless tube)
- Tension test
- Hardness test
- 100% PMI tested
- Flange test (for A790 S32101 welded tube)
- Reverse flattening test
Testing requirements and documentation of SA790 S32101 round pipe
SA 790 S32101 Solution and Bright Annealed Pipe are tested as per NACE MR0175 standard
European Standard
- EN 10312 (welded tubing)
- EN 10297-2 (seamless tubing)
- EN 10296-2 (welded tubing)
- EN 10217-7 (welded tubing)
- EN 10216-5 (seamless & welded tubing)
Dimensional Standard
- ASME B36.19M
OD & ID American Standard
- DIN EN ISO 1127
- A1016 / A1016M
- ASTM A999 / A999M
Testing Methods
- Corrosion test as per ISO 17781
- Microstructure examination (ISO 17781)
- Charpy impact testing (ISO 17781)
- NACE SP0391 (Sulphuric Acid)
- Microstructure examination as per ISO 17781
- NACE TM 0177 (Stress Corrosion Cracking in H2S environments)
- NACE MR0175/ ISO 15156 (H2S Containing Environments)
- NACE MR0103/ ISO 17945 (Resistant to Sulfide Stress Cracking)
Support Documents List With Each Delivery
- Hardness testing & Impact test result
- Galvanizing certificates
- Calculation reports & Welding Procedures
- Testing Procedures & PWHT Procedure.
- Manufacturing
- Ferrite check
- NDE and PMI Procedure
- HIC test certificates
- PMI including overlay NDE
- Purchase Requisitions
- Cross Sectional Assembly Drawings
- Testing and inspection procedures
- Thickness check
A790 UNS S32101 bright annealed pipe chemical composition
A790 S32101 Welded and ERW Pipe possesses high strength coupled with corrosion resistance
Ni Nickel 6.0-8.0 |
 |
C Carbon 0.030 |
Mo Molybdenum 3.0-5.0 |
Cr Chromium 24.0-26.0 |
|
N Nitrogen 6.0-8.0 |
Others - |
A790 S32101 duplex cold finished pipe mechanical properties
Yield Strength Mpa min- 550 |
 |
Tensile Strength Mpa min-795 |
Elongation 15.25% |
Hardness Brinell max 310 |
Equivalent grade of SA 790 S32101 welded pipe
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| LDX 2101 | 1.4162 | S32101 |
Types of ASTM A790 UNS S32101 pipe
ASTM A790 UNS S32101 seamless pipe
A790 S32101 duplex EFW pipe
A790 S32101 welded pipe
SA 790 UNS S32101 square pipe
A790 UNS S32101 ERW pipe
SA 790 S32101 round pipe
ASTM A790 S32101 rectangular pipe
SA 790 UNS S32101 solution annealed pipe
A790 S32101 cold finished pipe
SA790 S32101 hot finished pipe

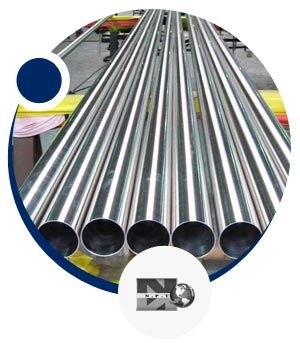

SA 790 S32101 bright annealed pipe
ASTM A790 S32101 electropolish pipe
SA790 UNS S32101 ERW pipe tensile and hardness
| Tensile |
|
| Hardness |
|
Physical properties of ASTM A790 S32101 electropolish pipe
| Physical Property | Value |
|---|---|
| Density | 7.8 g/cm³ |
| Modulus of Elasticity | 200 GPa |
SA 790 S32101 bright annealed pipe Stress Allowance
| Alloy | 200 °F | 300 °F | 400 °F | 500 °F | 600 °F |
|---|---|---|---|---|---|
| LDX 2101 | 26.9 | 25.6 | 24.7 | 24.7 | 24.7 |
Stress-Corrosion Cracking Resistance of A790 UNS S32101 SMLS pipe
U-bend testing in a 40% CaCl2 boiling solution (100ºC) for 500 hours
| Longitudinal/Transverse | |
|---|---|
| LDX 2101 | No SSC |
A790 S32101 material Behavior in Acids
| Test media | ASTM G 36, 45 % MgCl |
40 % CaCl2 |
40 % CaCl2 | ASTM G 123, 25 % NaCl, pH 1.5 |
25 % NaCl | ASTM C 692, 1500 ppm Cl- |
|---|---|---|---|---|---|---|
| Temp | 155 oC | 100 oC | 100 oC | 106 oC | 106 oC | 100 oC |
| Load | U bend | U-bend | 0.9 x R p0.2 (4-PB) | U- bend | U bend | Rp 0.2 |
| LDX 2101 | Corroded | Nil | Nil | Nil | Nil | Nil |
